2007-2019 Silverado 1500 Fox Factory Race Series 2.5 Coil-over Reservoir Shocks

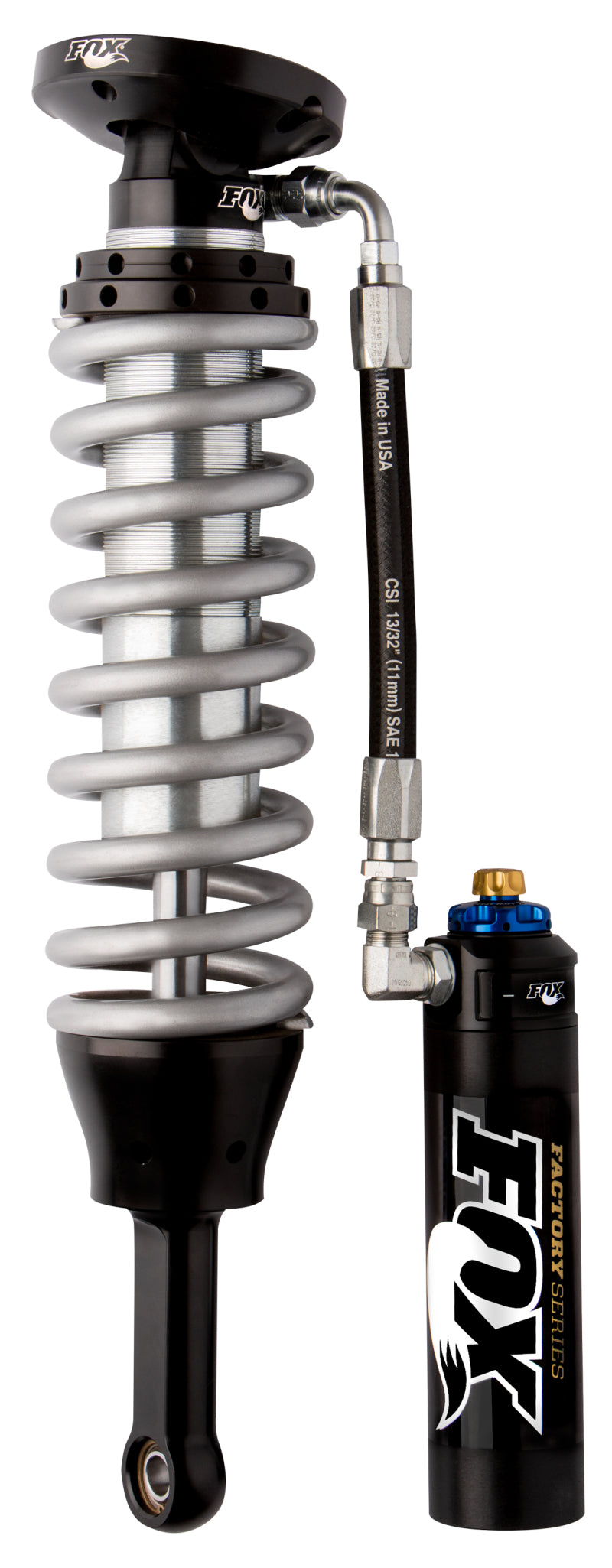

FOX Factory Race Series 2.5 Coil-Over Reservoir Shock (Pair) – Adjustable
The FOX Factory Race Series 2.5 Coil-Over Reservoir Shock Kit delivers uncompromising performance for aggressive street and racing applications. Engineered with race-proven damping technology, a large 2.5” steel shock body, and a remote reservoir system, this adjustable coil-over setup is built to provide maximum control, durability, and heat management under extreme conditions.
Featuring DSC (Dual Speed Compression) adjusters, this system allows independent tuning of low-speed compression for ride quality and high-speed compression for impact control and bottom-out resistance. The remote reservoir increases oil volume and reduces heat buildup during aggressive driving, helping maintain consistent damping performance under hard use. Built to FOX Factory Race standards, this coil-over kit is designed for long-term durability and high-performance consistency.
Designed specifically for 2007–Up Chevy 1500 front applications, this kit supports 0–2” lift setups and is sold as a pair.
Key Features
- 2.5” diameter shock body for increased oil capacity and heat dissipation
- Remote reservoir design for fade resistance under hard use
- DSC (Dual Speed Compression) adjusters
- Racing-focused valving and performance
- Coil-over configuration for improved suspension tuning
- Sold as a pair
- Designed for 0–2” lift applications
Installation
Application: 2007–Up Chevy 1500 Front
Lift Range: 0–2”
Position: Front
Professional installation recommended due to adjustability and performance calibration.
Specifications
- Series: Factory Race
- Shock Type: Coil-Over
- Usage: Racing
- Size: 2.5 in.
- Body Diameter: 2.5 in.
- Body Material: Steel
- Color: Steel
- Reservoir Type: Remote
- Adjuster Type: DSC – Dual Speed Compression
- Shock Stroke: 4.440 in.
- Travel: 4.36 in.
- Collapsed Length: 14.900 in.
- Compressed Length: 14.10 in.
- Extended Length: 19.340 in.
- Extended Length (Alt Spec): 18.46 in.
- Top Mount: TM
- Top Mount (P/N): TOP
- Bottom Mount: Eyelet
- Bottom Mount: Bar Pin
- Bottom Mount (P/N): 213-63-006
- Sold As: Pair
- Application Label: 07–ON Chevy 1500 Front Coilover, 2.5 Series, R/R, 4.4", 0–2" Lift, DSC
