2011-16 Ford Super Duty F-250 Ladder / Traction Bars (with top U bolt plate)

AP-82/3.5A/CF
Write a review
| Ask a question
  • Sale
  • Regular price $ 559.95
Shipping calculated at checkout.


 ADJUSTABLE TRACTION BAR KIT

If your Ford Superduty has a lift kit then your u bolts might have been flipped to a top U bolt plate design, in this case we will send an Axle clamp bracket to wrap around the axle for the rear traction bar mount. The majority of these trucks had a 10.5" Sterling rear axle which will have a fill plug on the rear diff cover.  If  you do not have a fill plug in the rear diff cover verify your axle tube diameter it might be the larger Dana 80 rear end with a 4" tube instead of the 10.5 sterling 3.5" axle tube diameter. We offer mounts for both axles please contact us if you have the larger axle or we will send the standard 3.5" axle clamp.

(Some models will require removal or trimming of skid plate on side of fuel tank for clearance)

Apoc's adjustable Tubular traction bars are a bolt on kit to easily enhance to he look of your Ford Super Duty Pick up, and also added much needing support for you rear suspension. Today's trucks can put some serious power to the ground causing wheel hop and leaf spring damage, stock or lifted your truck will benefit from a quality set of traction bars. If your truck is using lift blocks then a set of traction bars will add needed stability to your rear suspension. Our simple bolt on kit simply clamps around you rear axle housing and volts to your frame, drilling will be required for the frame mount unless you weld it on.  The design team also added an adjustable end to allow adjustments for easier install,or if you decide to lift you truck after installing our traction bars you can adjust the bar to fit with the added lift with out having to drill more hole or purchase a longer traction bar.

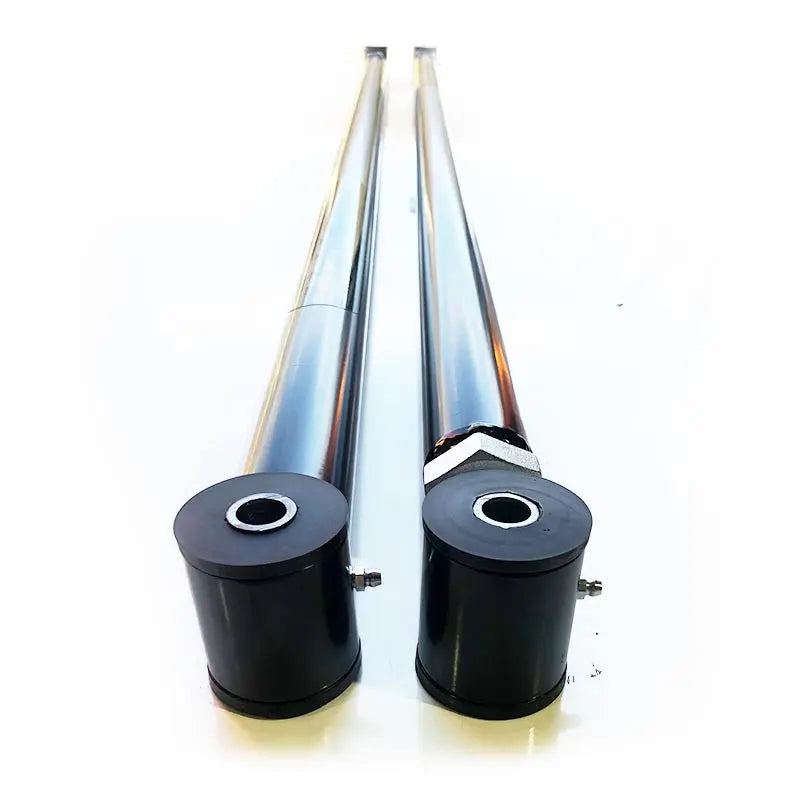

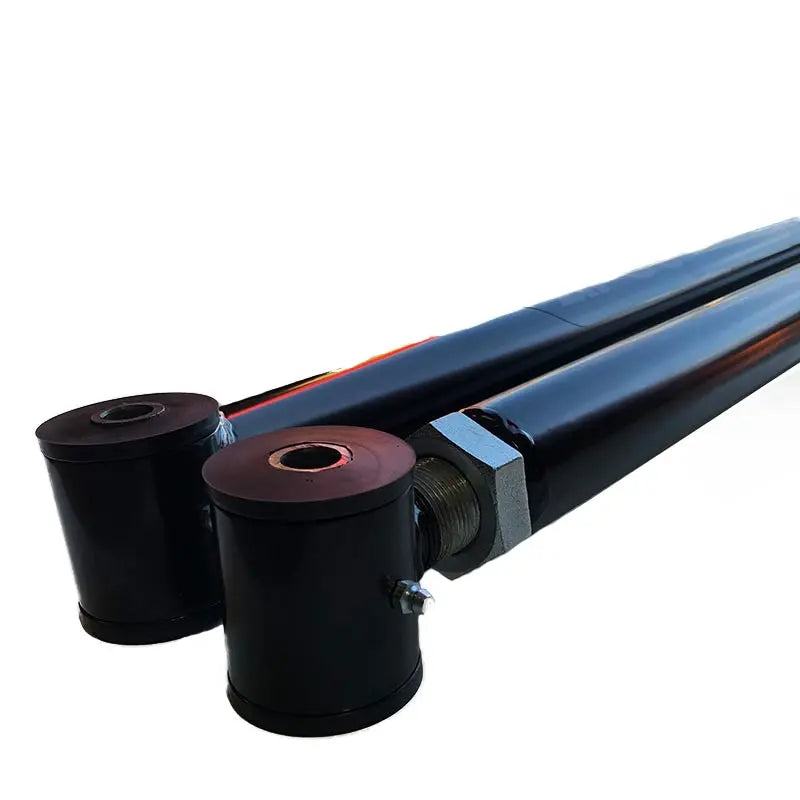

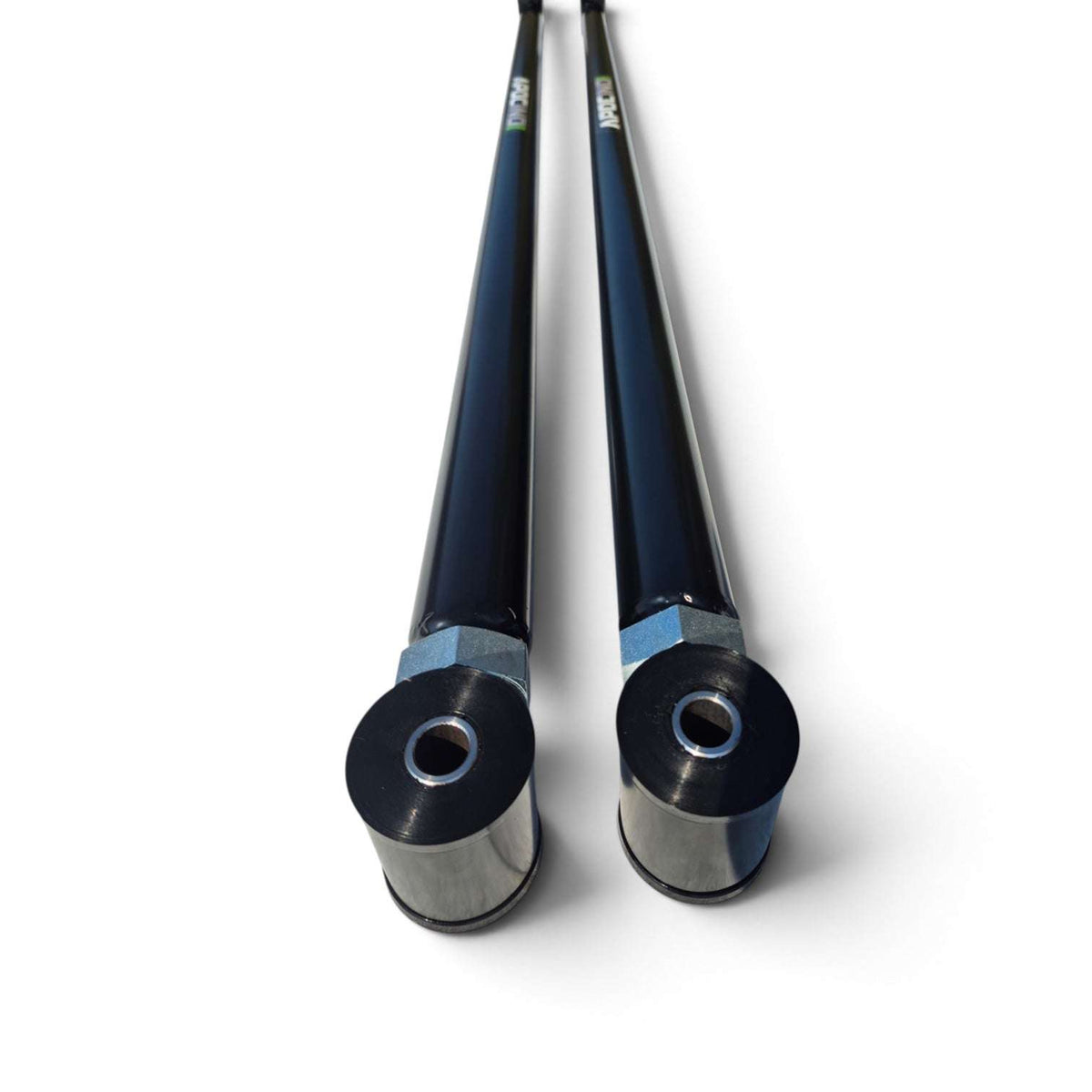

Traction Bars are 82" in length.  Axle Clamps are replaced with U-Bolt Plates to prevent axle twisting.

Parts Included:

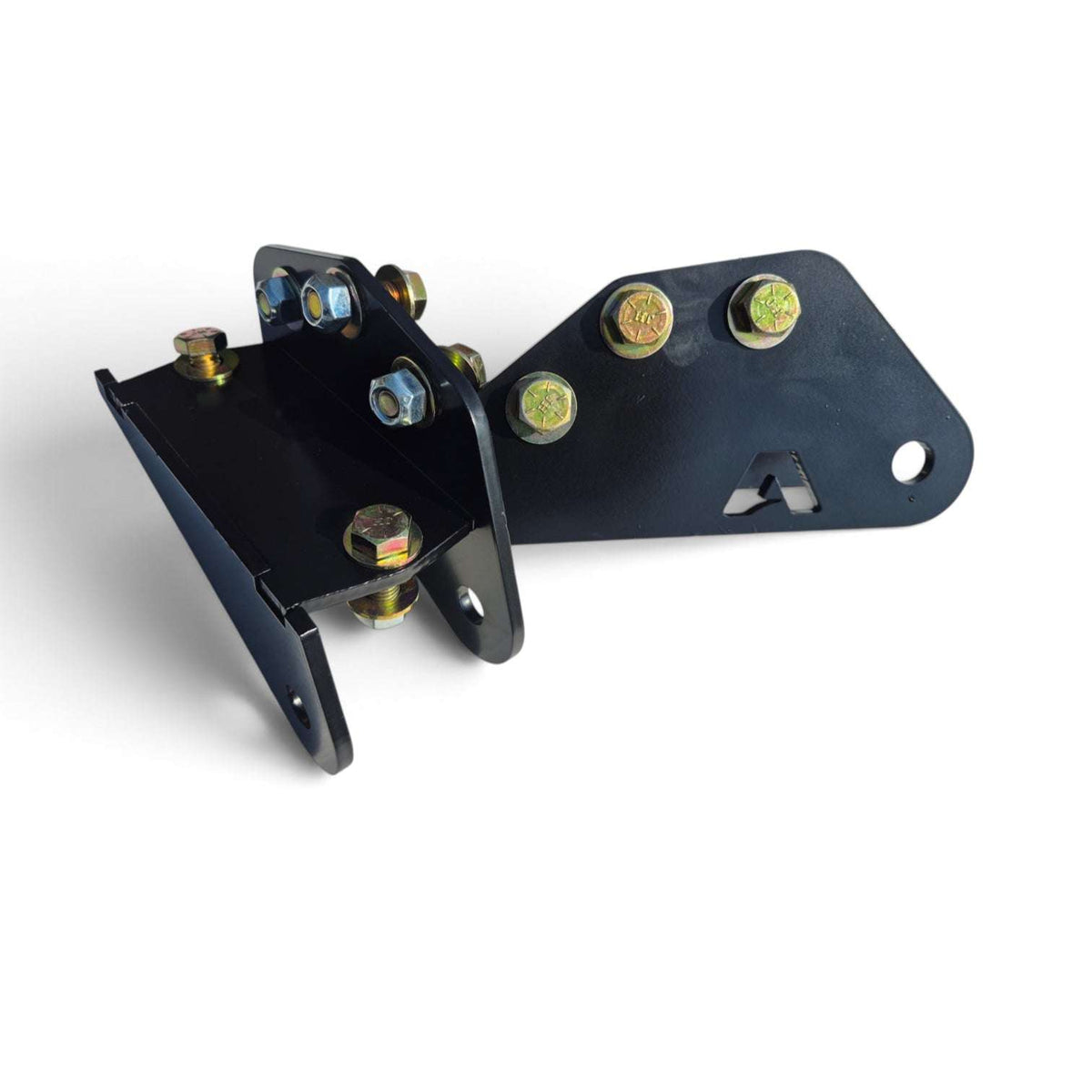

  • 2 Frame Mounts

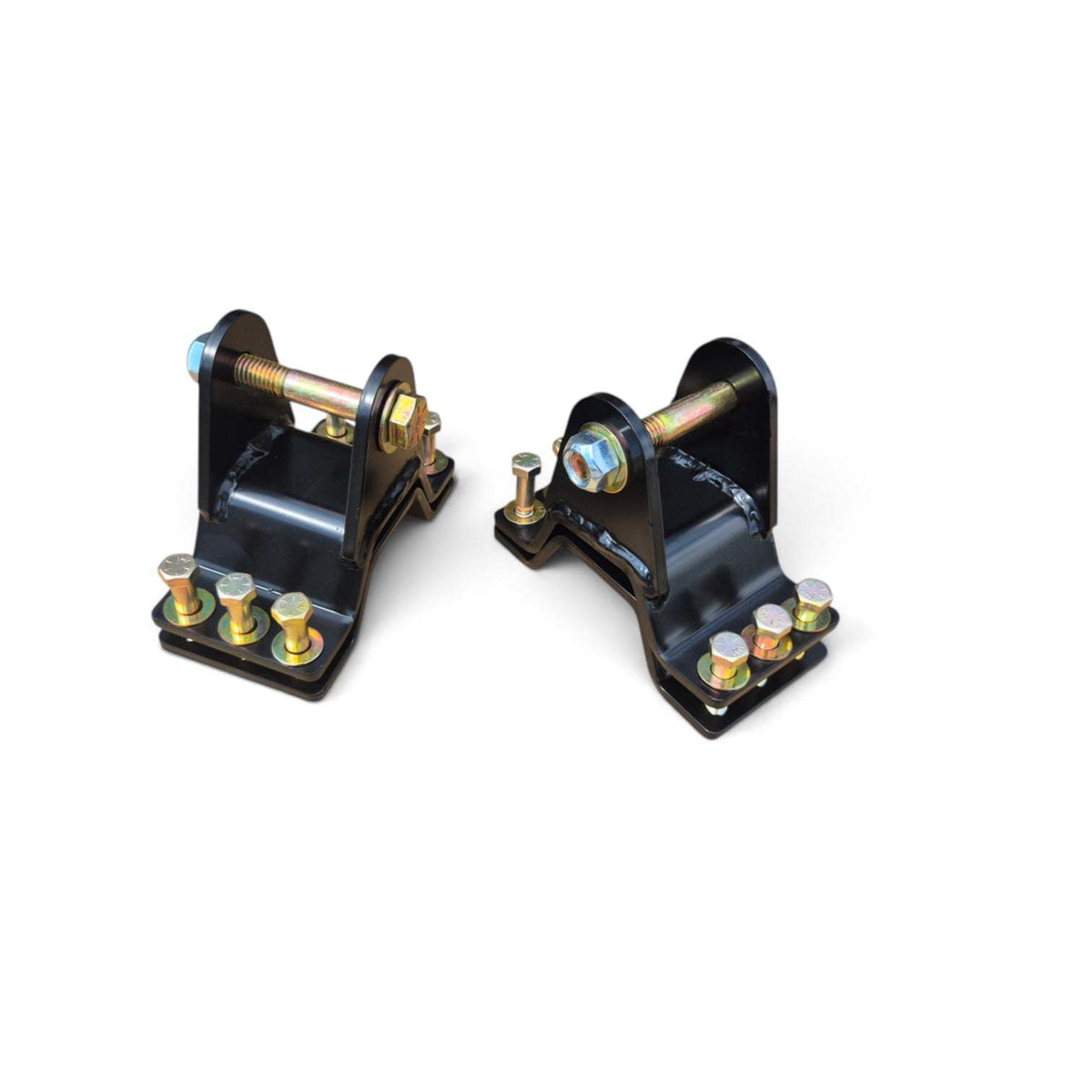

  • 2 U Bolt mounts
  • 2 Traction Bars
  • Install Hardware

Install Time:

  • 2.5 Hours
  • Basic Hand Tools
  • Drill and drill bits

 Install Instructions
