2020–2022 Ford F-250/F-350 SRW 4WD Air Lift LoadLifter 7500 XL Ultimate

The Air Lift LoadLifter 7500 XL Ultimate is a premium heavy-duty air spring kit designed for ¾-ton and 1-ton trucks equipped with single rear wheels. Built to handle up to 7,500 lbs of load-leveling capacity, this system provides unmatched towing and hauling support while maintaining a smooth, comfortable ride. Featuring large 7-inch double-convoluted bellows, internal jounce bumpers, and reinforced composite end caps, the LoadLifter 7500 XL delivers both strength and ride quality. Whether you’re towing large trailers, hauling heavy equipment, or carrying mixed loads, it helps restore proper ride height, reduce sag, and improve stability under load—all without sacrificing everyday drivability.

Key Features

• Up to 7,500 lbs of load-leveling capacity for heavy towing and hauling applications

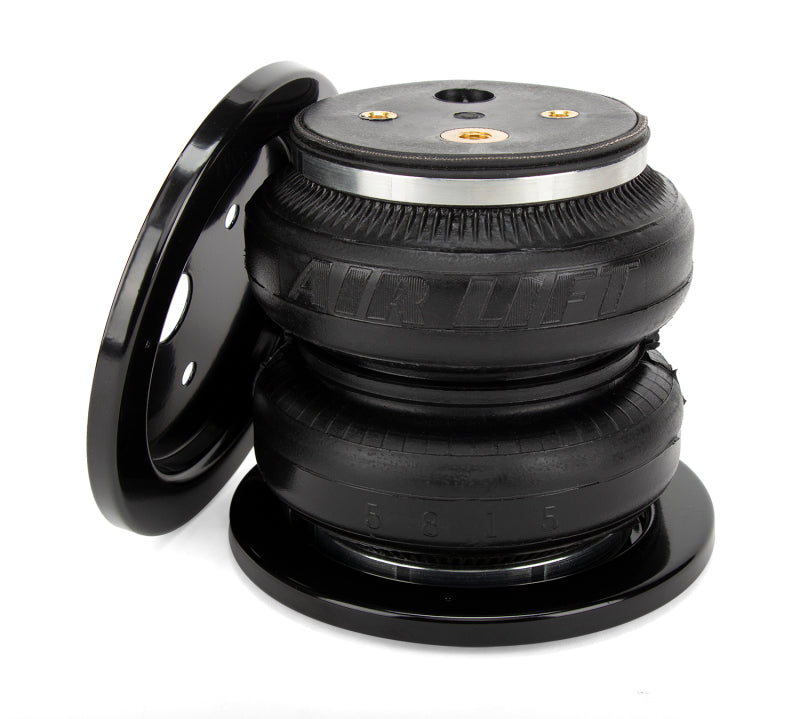

• Large-volume 7-inch diameter double-convoluted bellows — approximately 20% more volume than the LoadLifter 5000 series

• Internal urethane jounce bumper absorbs shocks and prevents damage when driving with an empty air bag

• Reinforced construction with 2-ply fabric and corrosion-proof nylon composite end caps

• Adjustable air pressure from 5–100 psi for a customized ride, loaded or unloaded

• Includes roll plates to protect the air springs and improve load support

• Backed by a limited lifetime warranty and a 60-Day Ride Satisfaction Guarantee

* Always observe the vehicle manufacturer’s Gross Vehicle Weight Rating (GVWR); the 7,500 lb figure refers to load-leveling support, not exceeding GVWR.

Fitment & Application

• Designed specifically for 2020–2022 Ford F-250/F-350 Super Duty SRW 4WD models

• Not compatible with commercial chassis or Dual Rear Wheel (DRW) configurations

• Rear-axle application

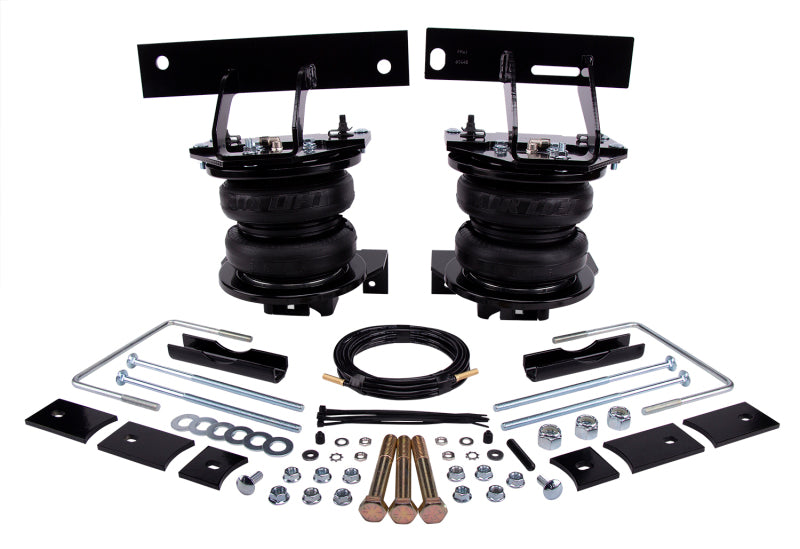

What’s Included

• 2 air springs

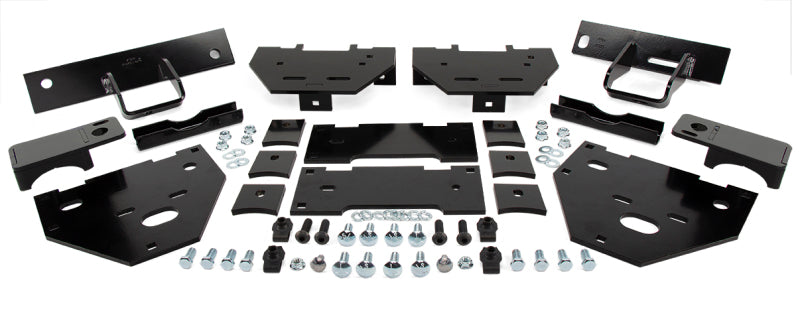

• All necessary mounting brackets

• All of the hardware needed for installation

• Fully-illustrated installation guide

Installation Notes

• Adjust air pressure based on load: start around 5 psi unloaded and increase as needed when towing or hauling

• After installation, recheck all fittings and brackets after initial use

• Do not exceed the vehicle’s GVWR; system provides load-leveling support, not additional payload capacity

Benefits & Use-Cases

• Ideal for trucks used in frequent towing or heavy hauling

• Maintains proper ride height for better handling, braking, and headlight aim

• Reduces rear-end sag, sway, and bottoming out under heavy loads

• Enhances ride comfort and stability even when unloaded

• Perfect for work trucks, tow rigs, and recreational hauling setups
