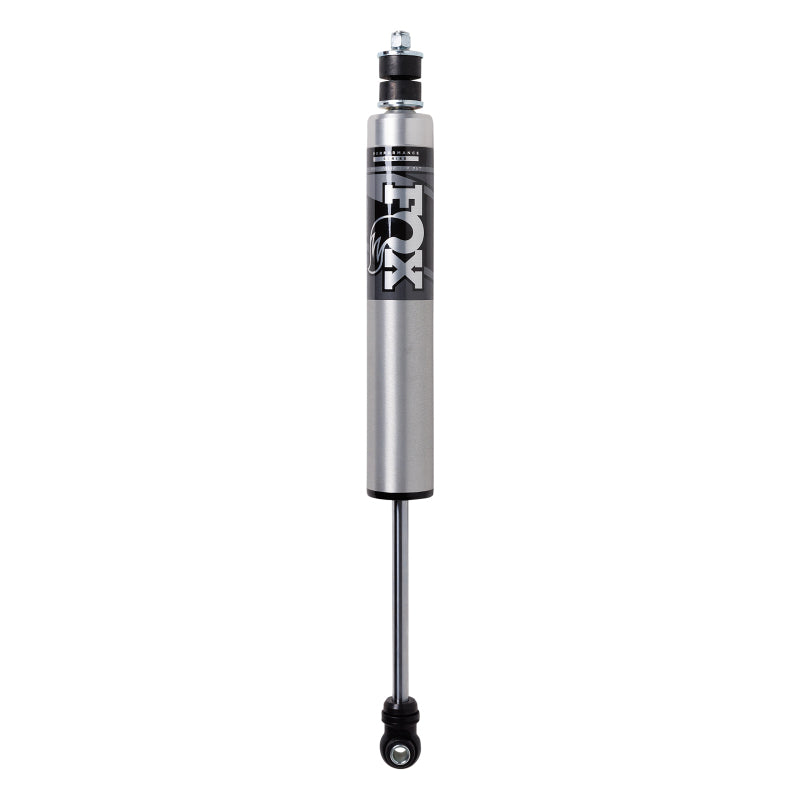

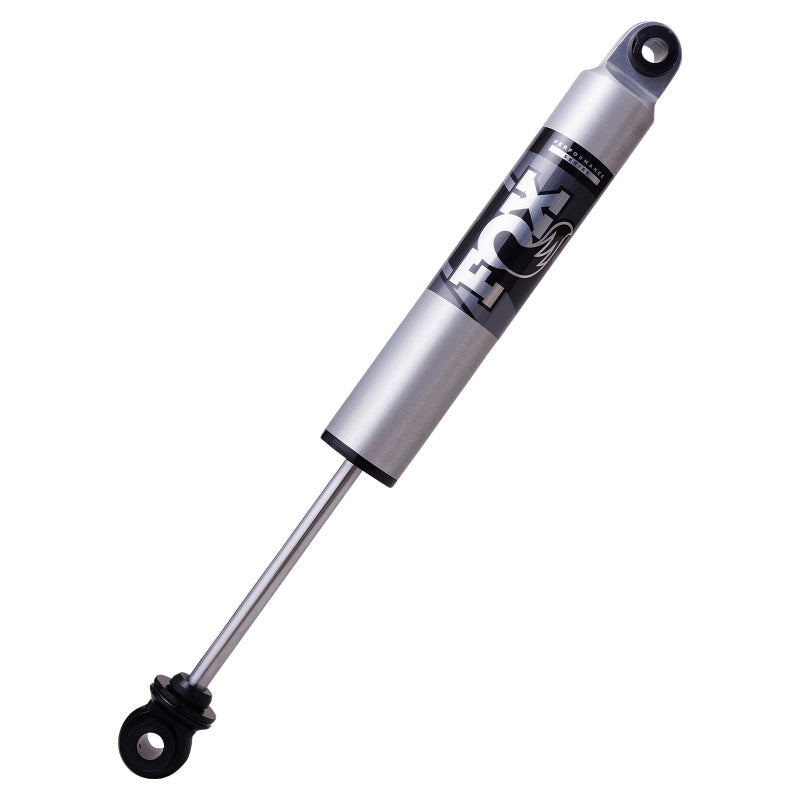

2005–2026 Ford F-250/F-350 Super Duty 4WD Fox 2.5 Performance Series HTO Front Shock (2–3.5" Lift)

Upgrade your suspension with the proven performance and reliability of FOX 2.5 Performance Series HTO shocks. Designed as a direct bolt-on upgrade, this shock features position-sensitive technology, vehicle-specific valving, and a larger 2.5-inch piston to significantly improve both on-road comfort and off-road control. The Type II anodized aluminum body efficiently dissipates heat while resisting corrosion, and the internal floating piston (IFP) separates shock oil from high-pressure nitrogen to maintain consistent damping performance.

Key Features

2.5" impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating for corrosion resistance
High-flow velocity-sensitive damping
5/8" hard chrome shaft for strength and durability
Internal Floating Piston (IFP) design for consistent performance
Hydraulic Top-Out (HTO) piston for position-sensitive rebound control
Reduces harsh top-out and improves ride comfort
Larger shock body increases damping capacity and heat dissipation
Vehicle-specific valving for optimized ride quality
Direct bolt-on installation

Shock Specifications:

Travel: 8.19"
Extended Length: 23.99"
Compressed Length: 15.8"
Top Mount: Stem Top
Bottom Mount: Eyelet

Performance & Design

The FOX 2.5 Performance Series HTO shock is engineered to deliver improved ride quality and control in demanding conditions. Hydraulic Top-Out (HTO) technology provides usable position-sensitive rebound damping by forcing shock oil through a secondary shim stack, slowing shaft speed at full extension. This reduces harsh top-outs and enhances overall comfort—especially beneficial for vehicles running larger, heavier tires or lifted beyond factory specifications.

Combined with a larger shock body and increased oil capacity, this design improves heat management and damping consistency during extended use, whether on the highway or off-road.

Installation

Install Time: 1–2 Hours
Difficulty: Basic to Moderate

Designed as a bolt-on upgrade, this shock installs using factory mounting locations with no major modifications required.

Fitment

2005–2026 Ford F-250 Super Duty 4WD
2005–2026 Ford F-350 Super Duty 4WD
Front shock application
Designed for 2–3.5" lift systems

Additional Trim Coverage:

2025 Ford F-250 Super Duty: King Ranch, Lariat, Platinum, XLT
2023–2026 Ford F-350 Super Duty King Ranch
2018–2024 Ford F-350 Super Duty Limited
2023–2026 Ford F-350 Super Duty Platinum

Notes

Sold individually unless otherwise specified
Mounting hardware may vary by application
Ideal for lifted vehicles and larger tire setups
