2017–2026 Ford F-250/F-350 4WD Leveling Kit | 2″, 2.5″ & 3″
Front Leveling for Your 2017–2026 Super Duty
Bring the front of your Ford Super Duty up to reduce its factory nose-down rake. The APOC Industries coil spacer leveling kit installs above the factory front coil springs and offers your choice of 2", 2.5", or 3" of front lift. Choose the height that suits your truck and the shock configuration you want, whether you're keeping the factory front shocks or adding an optional upgrade.
Fits 2017–2026 Ford F-250 and F-350 Super Duty, 4WD only. Does not fit 2WD models.
Construction & Lift Options
- Choose 2", 2.5", or 3" front lift.
- 1/4" high-carbon steel with CNC-cut components and reinforced welded supports.
- Satin black powder-coated finish.
- USA-made spacers.
- The 2" option requires minor trimming of the upper coil spring centering nub. The 2.5" and 3" spacers are direct bolt-on.
Choose Your Shock Configuration
The Shocks selector offers five configurations:

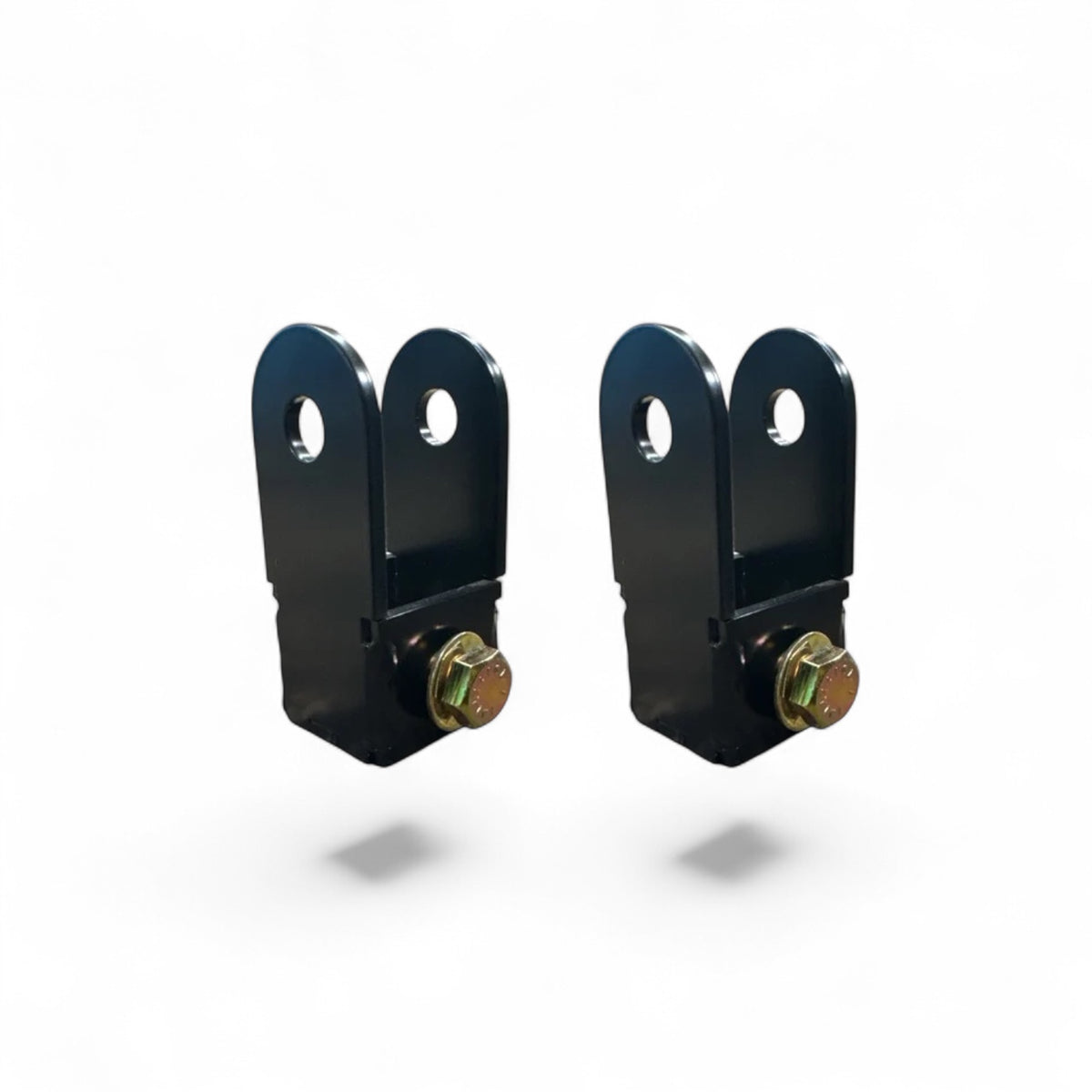

- No: Retain your factory front shocks with the included shock extensions.
- Fox2.0 Shocks: Optional front shock upgrade.
- Fox 2.0 Rezi: Optional reservoir front shock upgrade.
- Bilstein Shocks: Optional front shock upgrade.
- Bilstein Rezi: Optional reservoir front shock upgrade.
All four shock upgrades are compatible with all three available lift heights: 2", 2.5", and 3". Shock upgrades are optional and can help improve ride quality; the spacers provide the lift. To retain your factory front shocks, select No for the included shock extensions.
What's Included

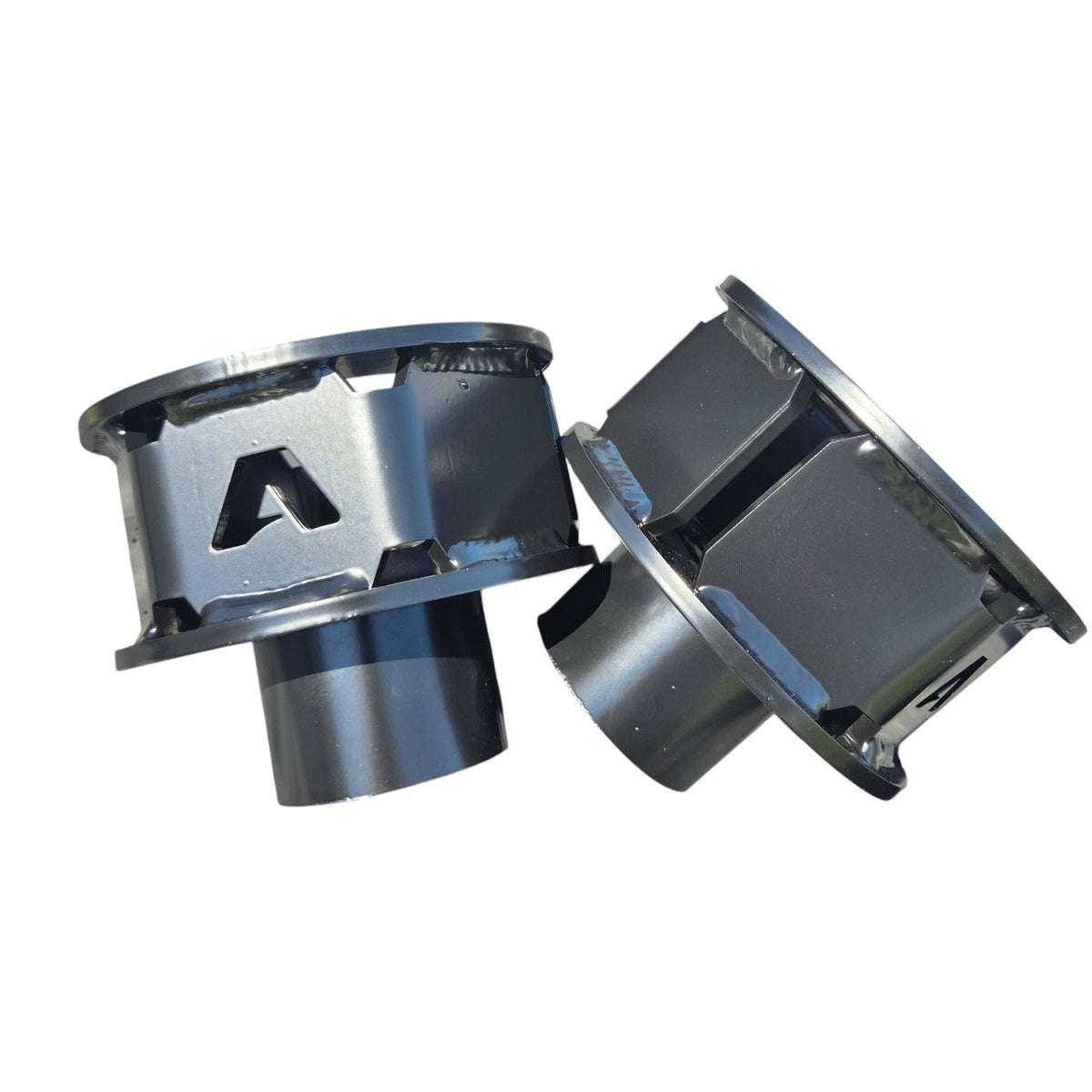

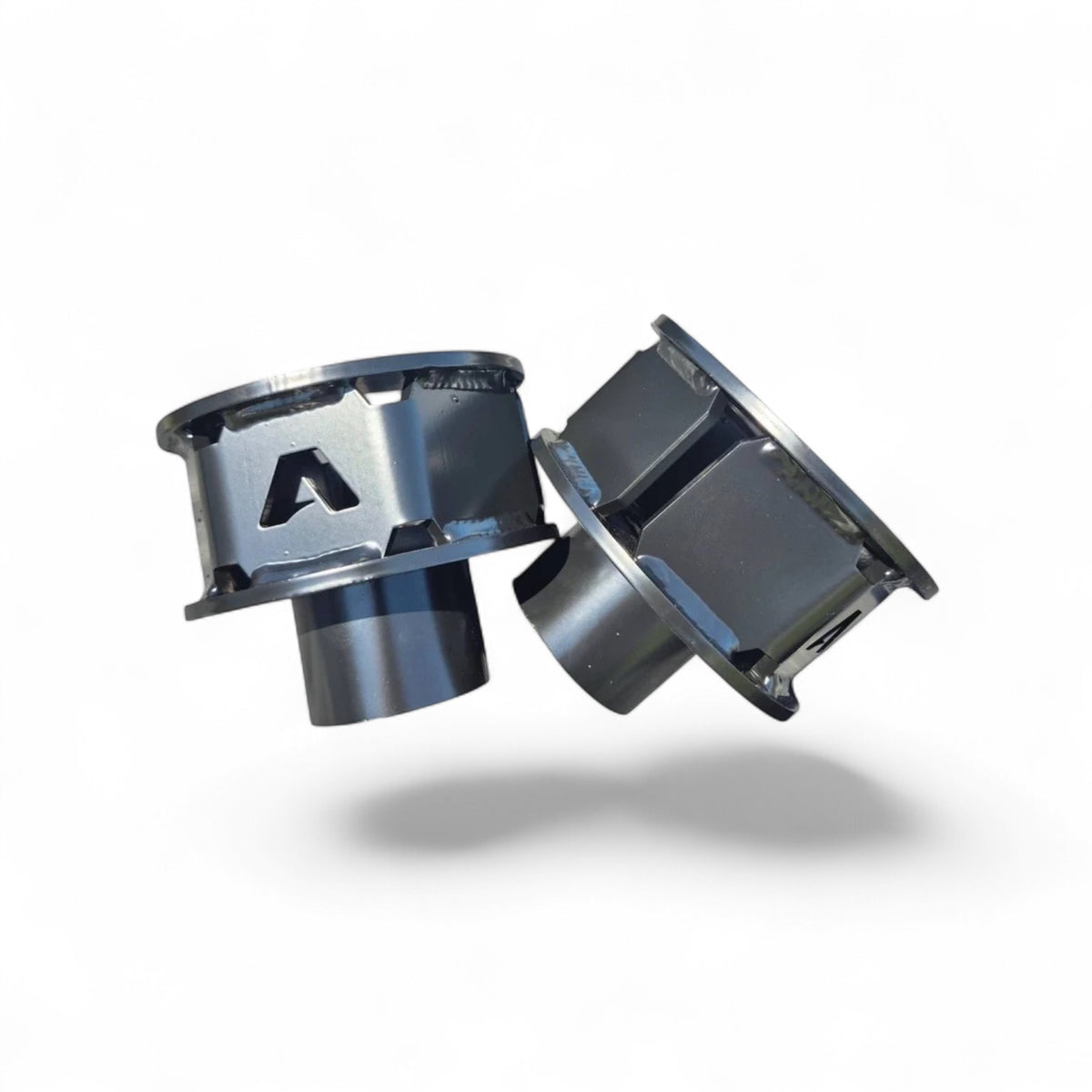

- (2) front coil spacers, driver and passenger side, in your selected lift height.
- Grade 8 hardware kit.
- Installation instructions.
- Shock extensions when the No shocks option is selected, or a pair of front shocks when a shock upgrade is selected.

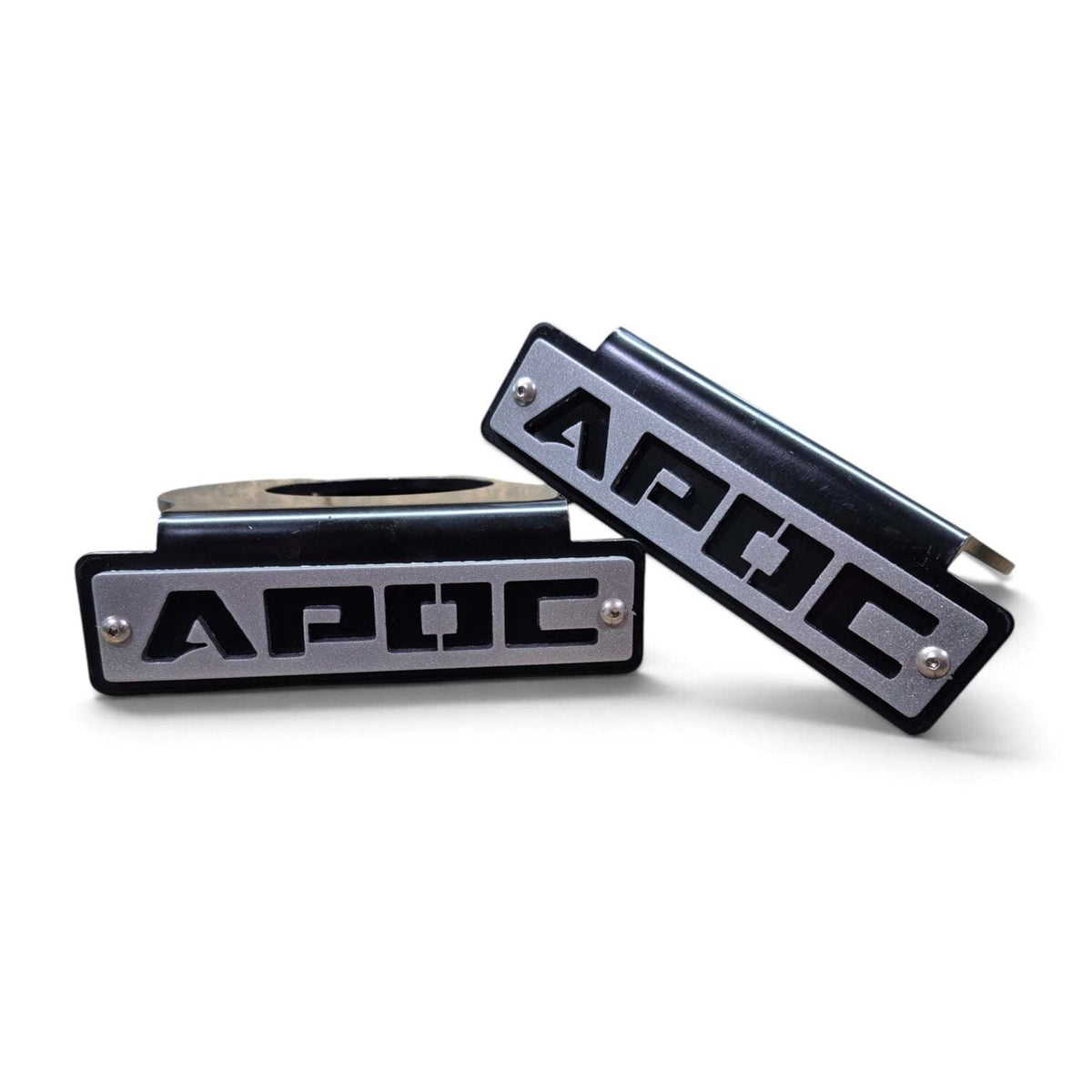

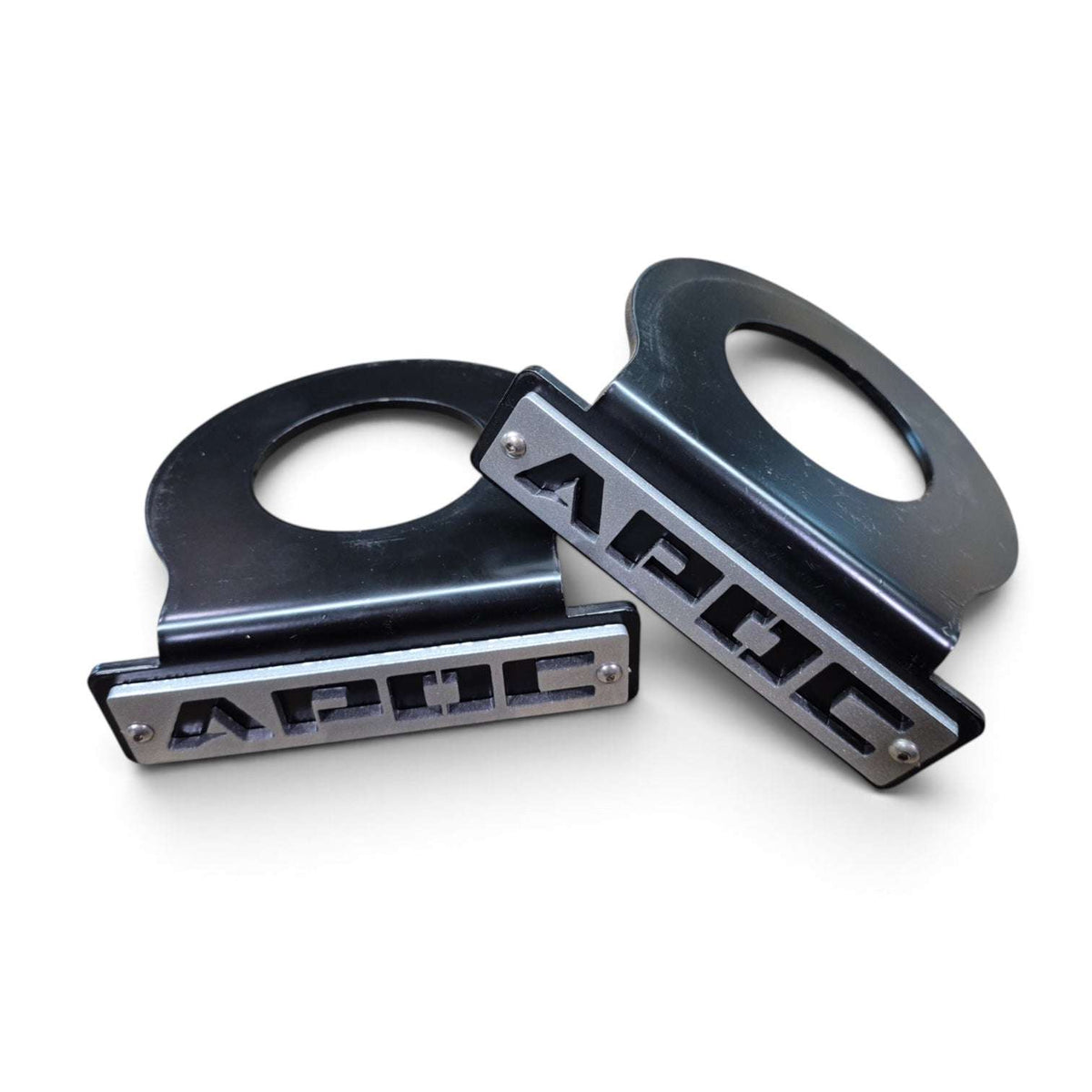

- APOC badge when the Yes badge option is selected.
Caster & Alignment
Raising the front changes suspension geometry and can reduce caster. Have the front end aligned after installation and have caster checked. Radius arm drop brackets or adjustable radius arms can help address caster correction; choose components compatible with your truck and lift height rather than assuming the spacers alone correct alignment.
2023–2026 Headlight-System Note
Trucks equipped with factory auto-leveling headlights require a headlight leveling sensor correction bracket after installation. This bracket is not included in the kit.
Installation
- Estimated installation time: 1–2 hours.
- Tools: basic hand tools, floor jack, and jack stands.
- 2" option: minor trimming of the upper coil spring centering nub is required.
- 2.5" and 3" options: direct bolt-on spacer installation.
- Front-end alignment required after installation.
Fitment
- 2017–2026 Ford F-250 Super Duty 4WD.
- 2017–2026 Ford F-350 Super Duty 4WD.
- Not compatible with 2WD models.
Further Reading
2017–2026 Ford F-250
Tire & Wheel Fitment Guide
Dial in the right tire and wheel combination for your leveling kit with fitment guidance built for a clean, dependable install.
Lift height2" Leveling Kit
Best fit: 35x12.50R20
Also fits as 295/65R20 or 315/70R18. Clean install, no trimming needed on factory or positive offset wheels. No larger size recommended.
2.5" Leveling Kit
Best fit: 35x12.50R20
The sweet spot for a trouble-free daily driver.
Secondary note: A narrow 37x11.50 is possible with careful wheel selection. 37x12.50 will rub the factory radius arms and front sway bar during turns — not recommended without modifications.
3" Leveling Kit
Best fit: 35x12.50R20 clears easily with zero issues.
Secondary note: 37x12.50 becomes possible on factory or mild aftermarket offset wheels, but may require minor front bumper valence trimming or a radius arm correction bracket.
| Wheel setup | Width | Offset / backspacing | Fitment notes |
|---|---|---|---|
| No-Rub / Clean Fit | 9" or 9.5" wide | +18mm to +20mm offset, ~5.75" backspacing | Zero rubbing with 35x12.50, tucks cleanly under fender flares |
| Flush / Slight Poke | 9" wide | 0mm to +12mm offset, ~5.00"-5.50" backspacing | Tires push ~0.5" past fender, may need minor front valence trimming |
| Factory Wheels | 8" or 8.5" wide | +40mm offset, ~6.00" backspacing | Safe for 35s, wide 12.50" tires may lightly brush radius arms at full lock |
| Aggressive Stance (High Rub Risk) | 10" or 12" wide | -12mm to -44mm offset, less than 4.75" backspacing | Will rub heavily, requires trimming |
Built Right. Backed. Right
Our crew’s on call Monday–Friday, 9–5 EST. Hit us up at 865-983-5004 — real support, done right.
Same Smooth Ride. Higher Stance. Badass Super Duty Attitude.
Level Up Your F-250 Without Sacrificing Ride Quality
Get the elevated stance and aggressive look your Ford F-250 Super Duty deserves — while keeping the smooth ride you already trust. Our leveling kits change the truck's attitude, not its ride quality, giving you more presence, better clearance, and a seriously badass look.
Smooth Ride, Unchanged
Designed to level your truck without changing spring stiffness, so your F-250 keeps the same smooth, controlled ride quality you expect from a Super Duty.
Higher Stance
Eliminate the factory nose-down rake and raise the front 2–3 inches for a more elevated stance, improved tire clearance, and a stronger road presence.
Badass F-250 Look
Give your Super Duty the bold, aggressive appearance it should have had from the factory — tougher, taller, and unmistakably badass without giving up comfort.
American Steel. American Built. No Shortcuts.
Built Tougher. Stands Taller.
Complete the Build with Fox Shocks
A leveling kit changes your geometry — your factory shocks weren't built for it. Upgrade to Fox 2.0 Performance Shocks and get dampening that's actually matched to your new lift height. Better control on the highway, better absorption on the trail, and a ride that doesn't beat you up. Don't level your F-250 halfway — finish it right.
Shop Fox Shocks
Finish the Build with Bilstein

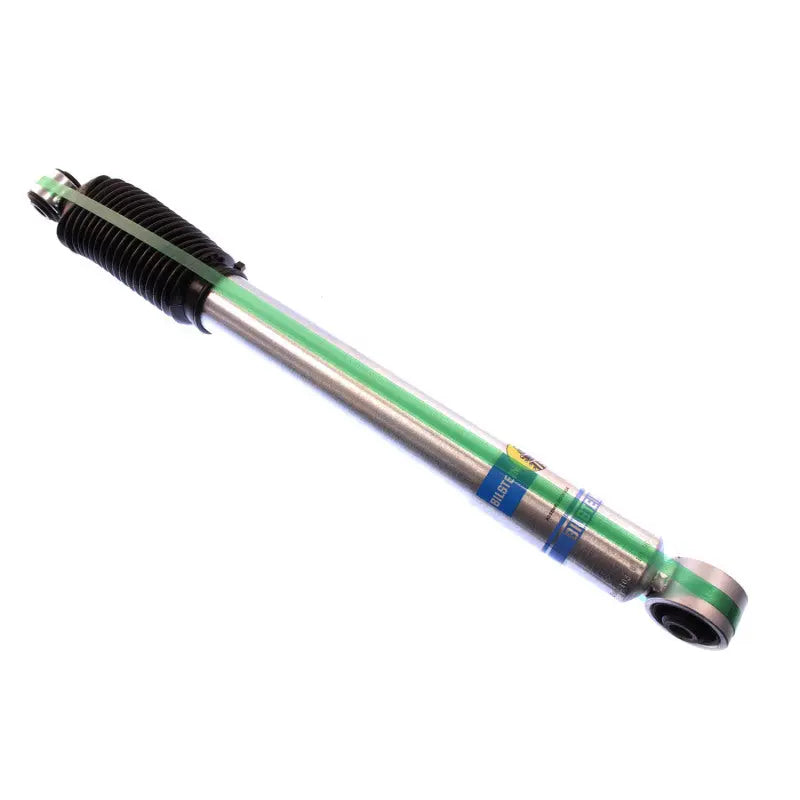

Factory shocks weren't tuned for a leveled F-250. Bilstein's monotube design runs cooler, responds faster, and holds its performance longer — matched specifically to your lift height. Choose the 5100 for daily driving, the 5160 for mixed use and bigger tires, or the B8 for full lift builds pushing 4"+. Built in Germany. Proven on Super Dutys.
Shop Bilstein Shocks
Ford F-250 Super Duty Leveling Kits: Lift, Clear 35s, and Build It Right
Stop driving a nose-down truck. APOC's Ford F-250 leveling kits give your Super Duty a level stance, 35" tire clearance, and a meaner look — bolt-on in under 2 hours.
