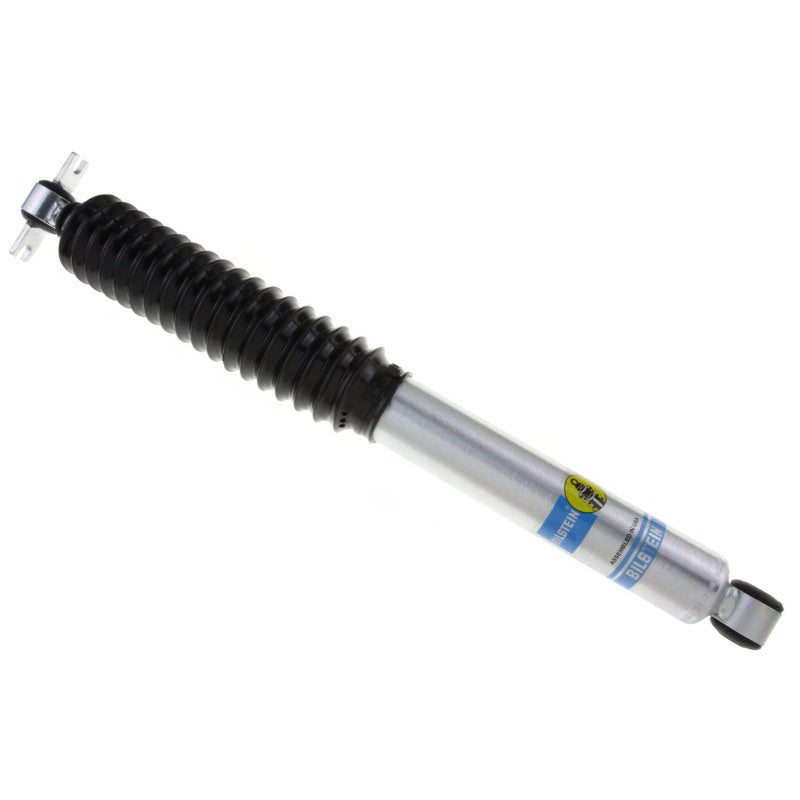

Bilstein 5100 Series 1998 Jeep Wrangler SE Rear 46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV's. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Key Features

• Monotube gas-pressure design delivers consistent damping and excellent heat dissipation.

• Velocity-sensitive, digressive piston automatically adapts to changing road and terrain conditions.

• Tuned for lifted applications to improve ride quality, handling, and control.

• Durable zinc-plated finish with clear coating for corrosion resistance.

• Smooth-body design, non-coilover, with included dust boot

• Direct bolt-on replacement with no modifications required

  Technical Specifications

  Specification	Value
  Series	Bilstein B8 5100
  Position	Rear
  Design	Monotube, gas-charged
  Body Diameter	46 mm
  Collapsed Length	14.63 in
  Extended Length	23.07 in
  Stroke / Travel	8.44 in
  Upper Mount	Bar Pin
  Lower Mount	Eyelet (12.7 mm bushing)
  Finish	Zinc plating with clear protective coating
  Protective Boot	Included
  Warranty	Limited lifetime (original purchaser)
