2004-2022 Ford F-150 4, 6, 8 Inch Lift Blocks
2004-2022 Ford F150 with Lift Blocks

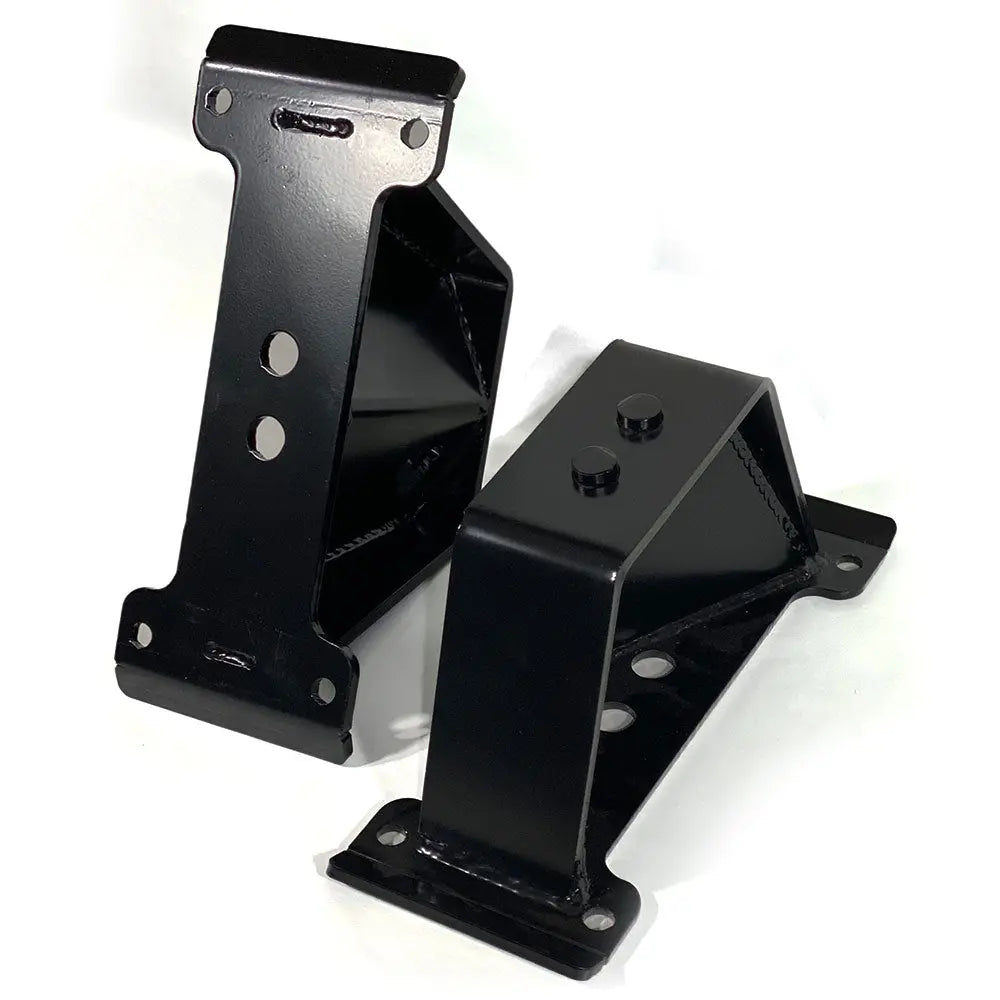

In need of some serious lift blocks for your Ford F-150, Apoc Industries fabricated lift blocks have you covered. Our lift blocks offer insane strength but also look good doing it. Why lift yourFord F-150 truck with weak cast lift blocks when you can get the lift you want and look fantastic? Our fabricated lift blocks are made from 1/4" steel and pressure bent to add incredible strength and powder coated to look good for the long haul. Apoc's tapered design helps to reduce axle wrap when putting massive torque to the ground, along with an actual spring width block to match your leaf springs.
Features
Sold as a Pair!
- 3" Wide
- Heavy Duty Lift blocks are fully welded and powder coated. U bolts are not included.
- Made from 1/4" steel
- Multiple leaf spring centering pin mounting locations on the centering axle in the fender.
- Pressure bent center support to increase strength
- Powder-coated satin black.
- Three degrees of taper to maintain proper pinion angle.
Installation
- Method to raise and support vehicle weight off of the rear axle.
- Large breaker bar and socket
- Torque Wrench
Optional Choices (does not come with unless added)

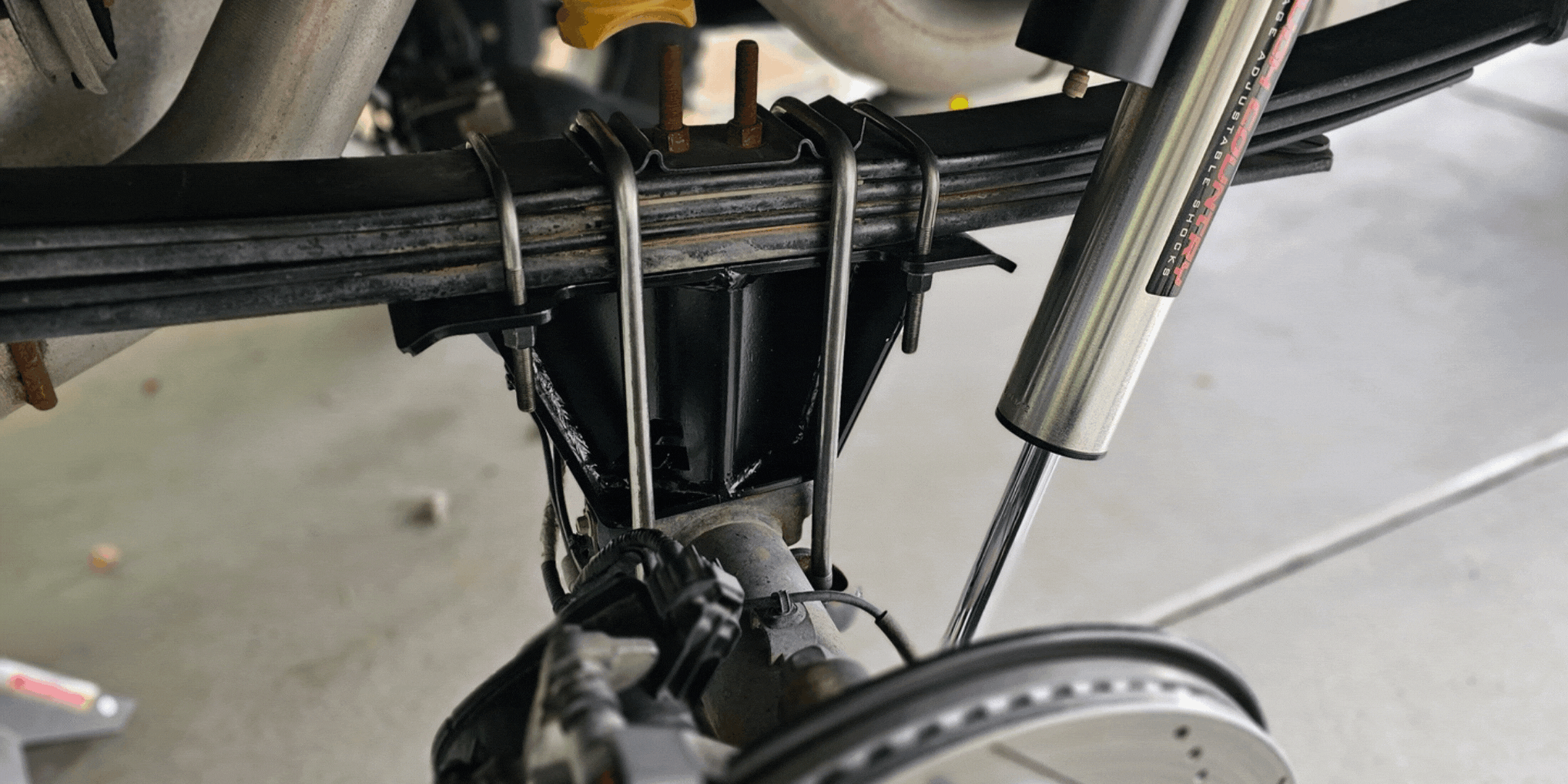

Anti Wrap u-bolts can be added to your blocks. The small hole on each corner of the lift block is for the anti wraps u-bolts; they add additional support by clamping around the leaf spring at the widest part of the block to help reduce the leaf spring from twisting.
3/4" Main U-bolts can also be added. These U-bolts will go over the Leaf spring alongside the lift blocks and under the axle to hold the rear axle to the truck. these will come in 14", 16", or 18", depending on the block size you choose.
Install Time
- 2.5 hours
- Easy to moderate install (rusty U-bolts can cause the removal of original U-bolts hard.)
- Install Instructions
Built Right. Backed. Right
Our crew’s on call Monday–Friday, 9–5 EST. Hit us up at 865-983-5004 — real support, done right.
Built for Strength. Designed to Fit.
Vehicle-Specific Fit
Apoc lift blocks are vehicle-specific and engineered to match your truck’s factory leaf spring setup. The alignment hole and center pin locations are precisely positioned to match OEM specs, ensuring a secure, direct fit with no modifications required.
Vibration-Reducing Taper
Tapered lift blocks correct pinion angle, which helps maintain proper driveline geometry on lifted trucks. This reduces or eliminates driveline vibrations and minimizes wear on u-joints and differential components—especially important when adding rear lift height.
Benifts of anti-wrap lift blocks
Standard blocks provide basic lift, while anti-wrap blocks feature a wider footprint and additional bracing to reduce axle wrap and wheel hop—especially important for lifted trucks with big tires or high torque output.
FAQ'S
Lift Blocks
Here are some of the most common questions we receive about lift blocks, installation, and related components. Our goal is to help you make the best decision for your build with clear, practical information.
A: Yes. Apoc lift blocks are true to size—the height listed is the actual block height, providing that exact amount of rear lift when installed. For example, a 3" block adds 3" of lift over your current leaf spring height.
A: Apoc lift blocks are vehicle-specific and engineered to match your truck’s factory leaf spring setup. The alignment hole and center pin locations are precisely positioned to match OEM specs, ensuring a secure, direct fit with no modifications required.
The main U-bolts are required to secure the axle and block assembly to your leaf springs. You do not have to purchase them from us if your existing U-bolts are long enough. However, if you are changing the size of your lift block, you will need longer U-bolts. Simply measure the difference in height between your current block and the new block — your new U-bolts will need to be that much longer than your current ones.
Anti-wrap U-bolts are optional. They are designed to secure the wider footprint of the block more firmly to the leaf spring, helping to reduce axle wrap, spring twist, and wheel hop. The taller the block, the more beneficial anti-wrap U-bolts become. For block heights over 6 inches, we recommend also installing ladder bars for added stability and to prevent driveline issues.
A: Standard blocks provide basic lift, while anti-wrap blocks feature a wider footprint and additional bracing to reduce axle wrap and wheel hop—especially important for lifted trucks with big tires or high torque output.
A: No, stacking lift blocks is not recommended and can be dangerous. It compromises stability, increases the risk of axle shift, and can cause premature wear or failure of suspension components. Always use a single, properly sized Apoc lift block for safe, reliable performance.
