Air Lift Replacement Air Spring – LoadLifter 5000 Ultimate
Air Lift Replacement Air Spring – LoadLifter 5000 Ultimate
When you already have a LoadLifter 5000 Ultimate air spring system and need to replace only the air spring itself, this replacement unit offers a direct-fit solution engineered to restore original load-leveling performance. It features the same internal jounce bumper and heavy-duty construction found in the full kit, providing consistent ride stability, safety, and durability without the expense of replacing the entire assembly.
Key Features & Benefits
-
Replacement single air spring designed to restore functionality in existing LoadLifter 5000 Ultimate air spring kits.
-

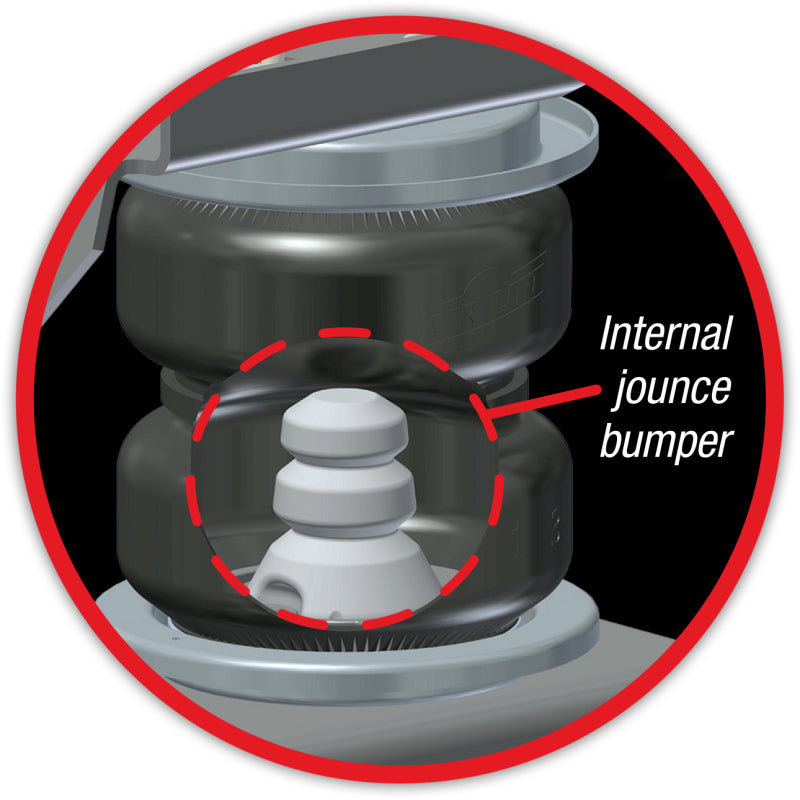

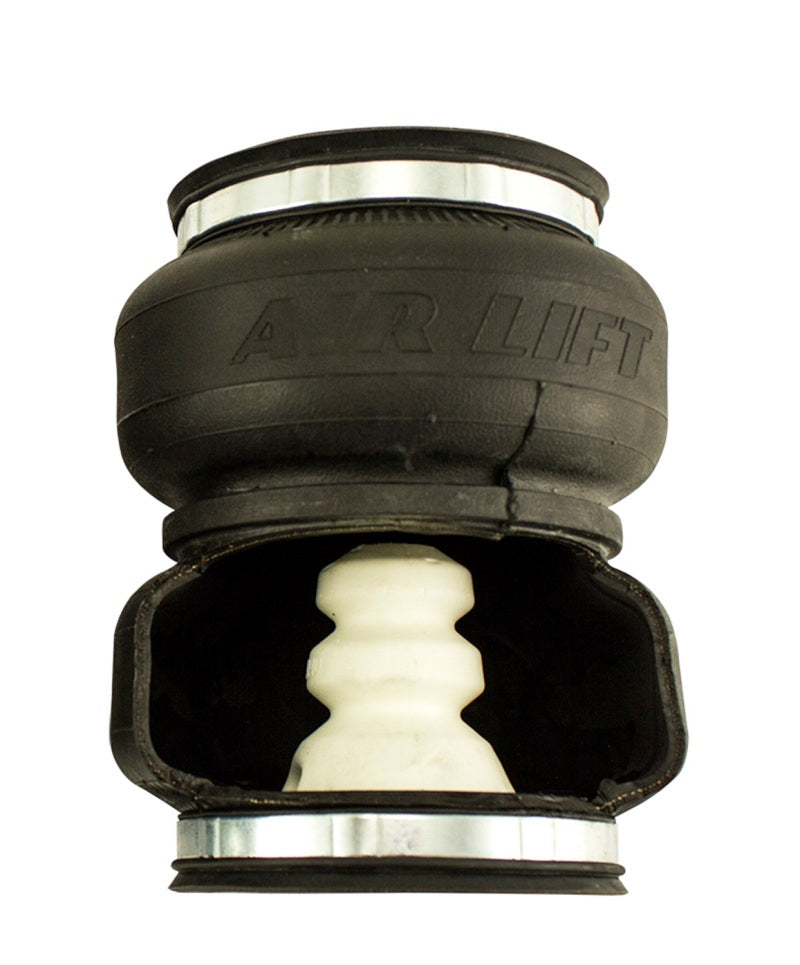

Built-in internal jounce bumper protects against bottoming out under heavy load or full suspension compression.
-
Durable rubber bellows reinforced with synthetic fabric and steel girdle ring for added strength and long service life.
-
Corrosion-resistant composite end caps prevent rust and extend the service life of the air spring.
-
Adjustable air pressure operation (within the complete kit system) supports up to 5,000 lb of load-leveling capacity.
-
Backed by Air Lift’s limited lifetime warranty when used within supported kits.
What’s Included
-

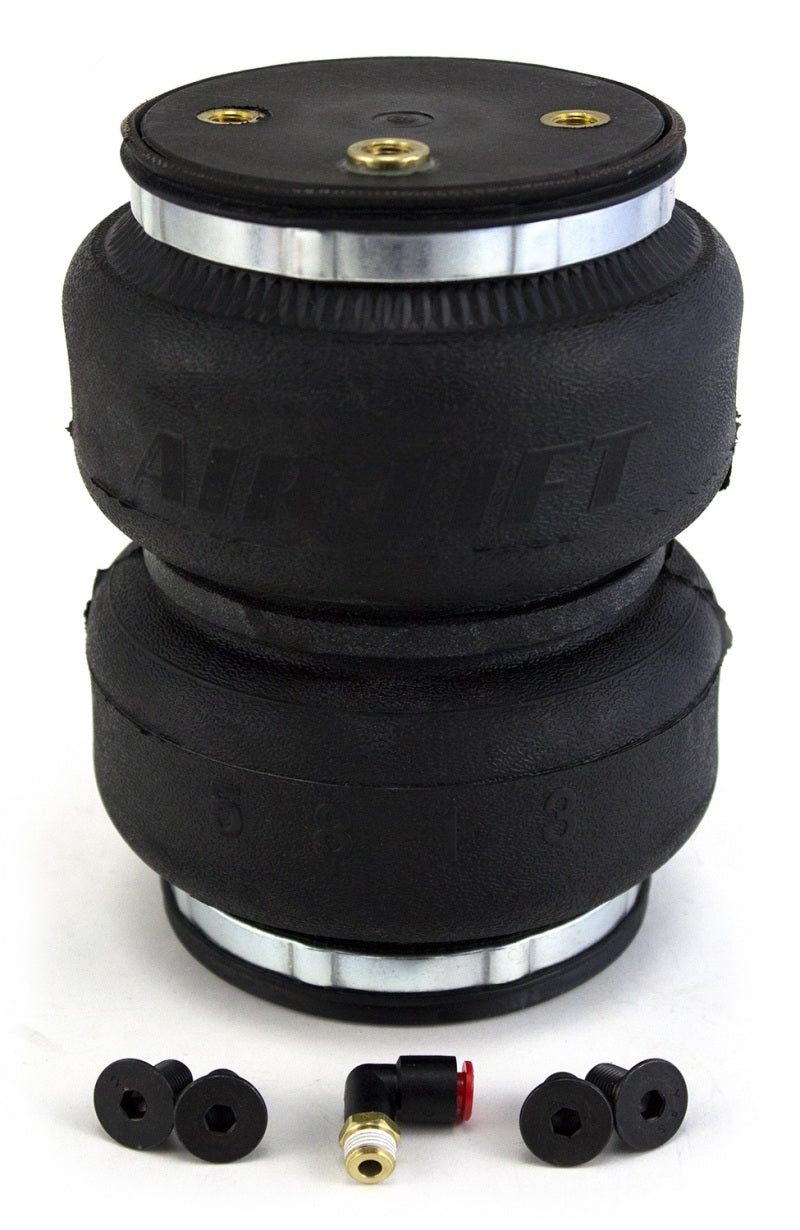

Includes one (1) replacement bellows air spring with internal jounce bumper
-
Hardware included
-
Brackets not included
-
Sturdy rubber construction with synthetic fabric reinforcement
Applications & Fitment
This replacement air spring is designed for use with Air Lift LoadLifter 5000 Ultimate kits including part numbers 88131, 88202, 88208, 88212, 88215, 88216, 88217, 88219, 88221, 88229, 88231, 88237, 88250, 88291, 88298, 88347, 88349, 88390, 88393, 88395, 88396, 88397, and 88398.
Compatible with many popular full-size trucks, vans, and SUVs equipped with these systems. Verify fitment before purchase.
Installation & Usage Notes
-
Installs into the existing LoadLifter 5000 Ultimate bracket system.
-
Inspect original hardware and brackets before replacement; damaged components may require a complete kit.
-
Ensure proper clearance and correct air line routing.
-
Adjust air pressure according to load weight and manufacturer recommendations.
-
Follow Air Lift installation instructions and torque specifications carefully.
