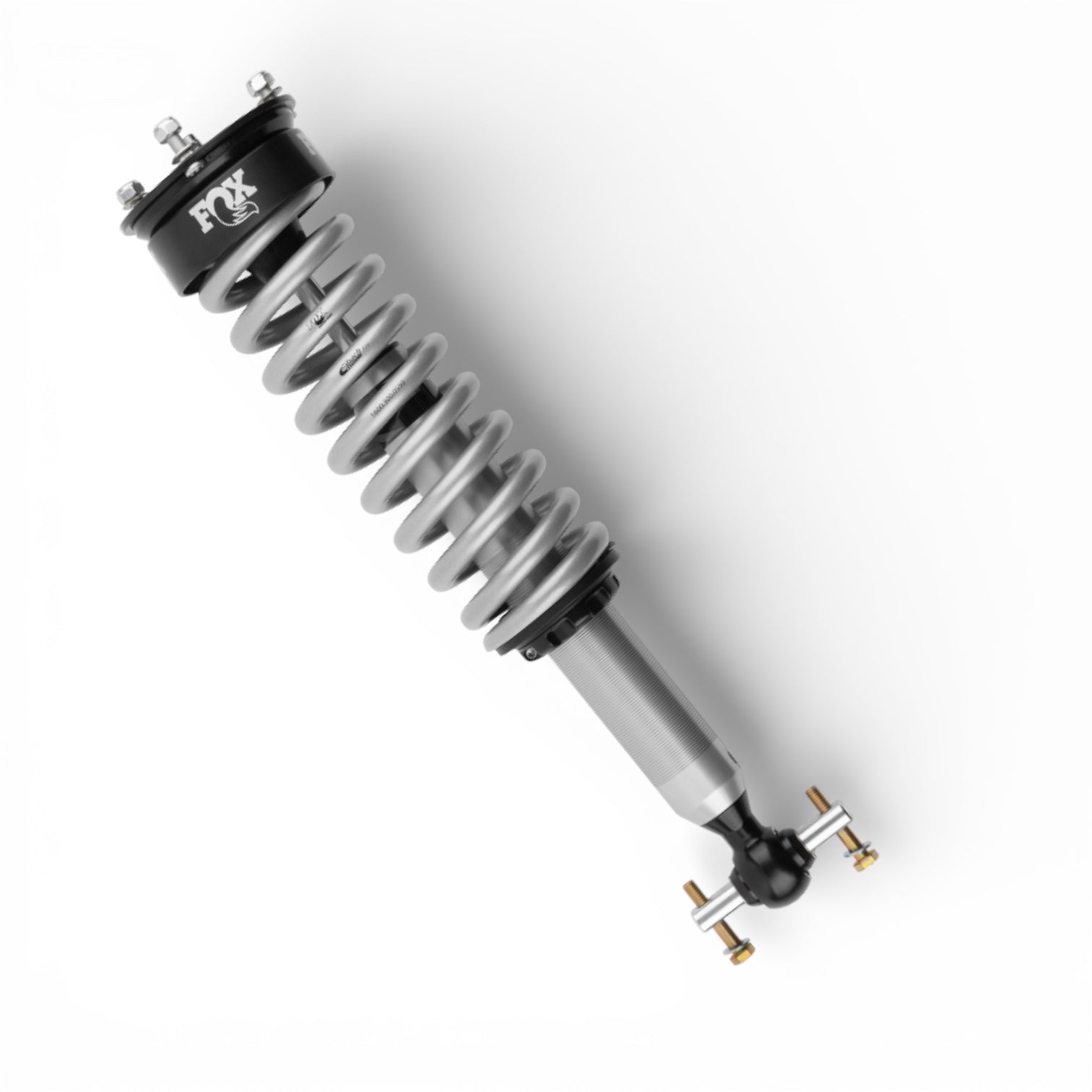

1995–2004 Toyota Tacoma / 1996–2002 Toyota 4Runner FOX 2.0 Performance Series Front Coilover Shocks – 0–2" Lift

Upgrade your suspension with the FOX 2.0 Performance Series Coilover Shock, engineered with advanced technology to deliver improved ride quality, enhanced off-road performance, and adjustable front lift. The precision metal impact-extruded aluminum body increases cooling capacity while providing excellent corrosion resistance. Inside, an Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure nitrogen gas chamber, eliminating oil aeration and ensuring consistent damping performance with factory-tuned precision valving. Locking spring preload rings allow easy ride height and preload adjustments while retaining a high-quality racing coil selected for optimal spring rate. The vehicle-specific upper mount features a composite bushing to help isolate noise and vibration for a smoother ride. Designed as a direct bolt-on upgrade with no modifications required, the FOX Performance Series 2.0 Coilover installs easily and is built to level the front of your truck while delivering a comfortable on-road ride and predictable off-road handling, even in demanding conditions.

Key Features

• Adjustable 0–2" front lift height to help level the vehicle stance
• Precision impact-extruded aluminum shock body for improved cooling and corrosion resistance
• Internal Floating Piston (IFP) mono-tube design prevents oil aeration and maintains consistent damping
• Factory-tuned precision valving optimized for performance and comfort
• Locking spring preload rings allow easy ride height and preload adjustments
• High-quality racing coil spring selected for optimal spring rate

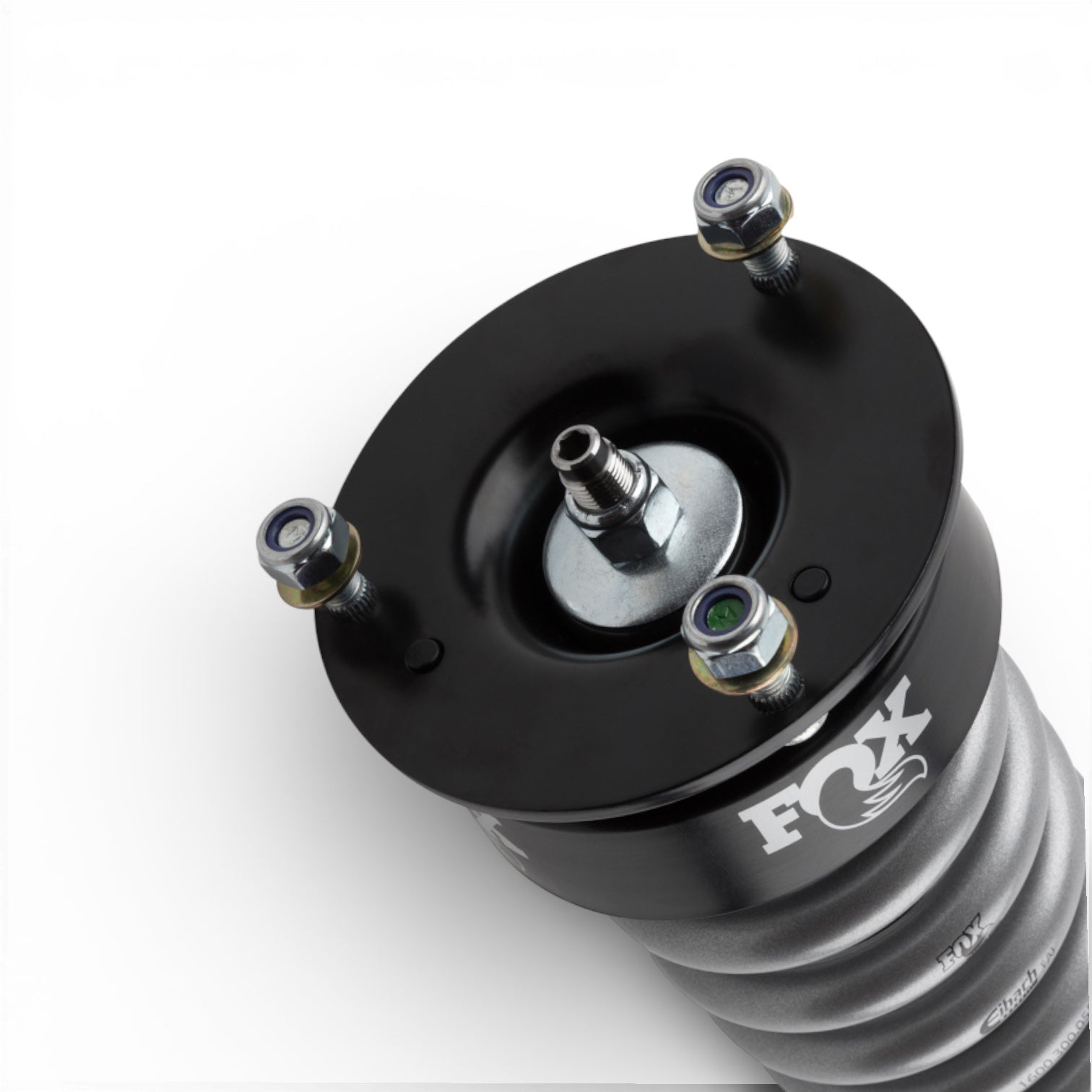

• Vehicle-specific upper mount with composite bushing to reduce noise and vibration
• Direct bolt-on installation with no modifications required

Specifications

• Series: Performance Series
• Position: Front
• Travel: 4.89"
• Front Lift Height: 0–2"

Shock Body

• Body Diameter: 2.0"
• Body Construction: Impact-extruded and CNC-machined 6061-T6 aluminum one-piece body
• Body Finish: Clear anodized for corrosion resistance and durability

Components

• Black anodized CNC-machined 6061-T6 billet aluminum components

Shaft

• 5/8" hard chrome plated heat-treated alloy steel shaft

Internal Components

• Piston: Race-developed high-flow piston design
• Valving: Application-specific valving to maximize performance
• Seals: Redundant sealing pack system including main seal, wiper seal, and scraper seal
• Bearings: Large-diameter heavy-duty spherical bearings

Dimensions

• Extended Length: 18.49"
• Compressed Length: 13.6"

Mounting

• Top Mount: TM

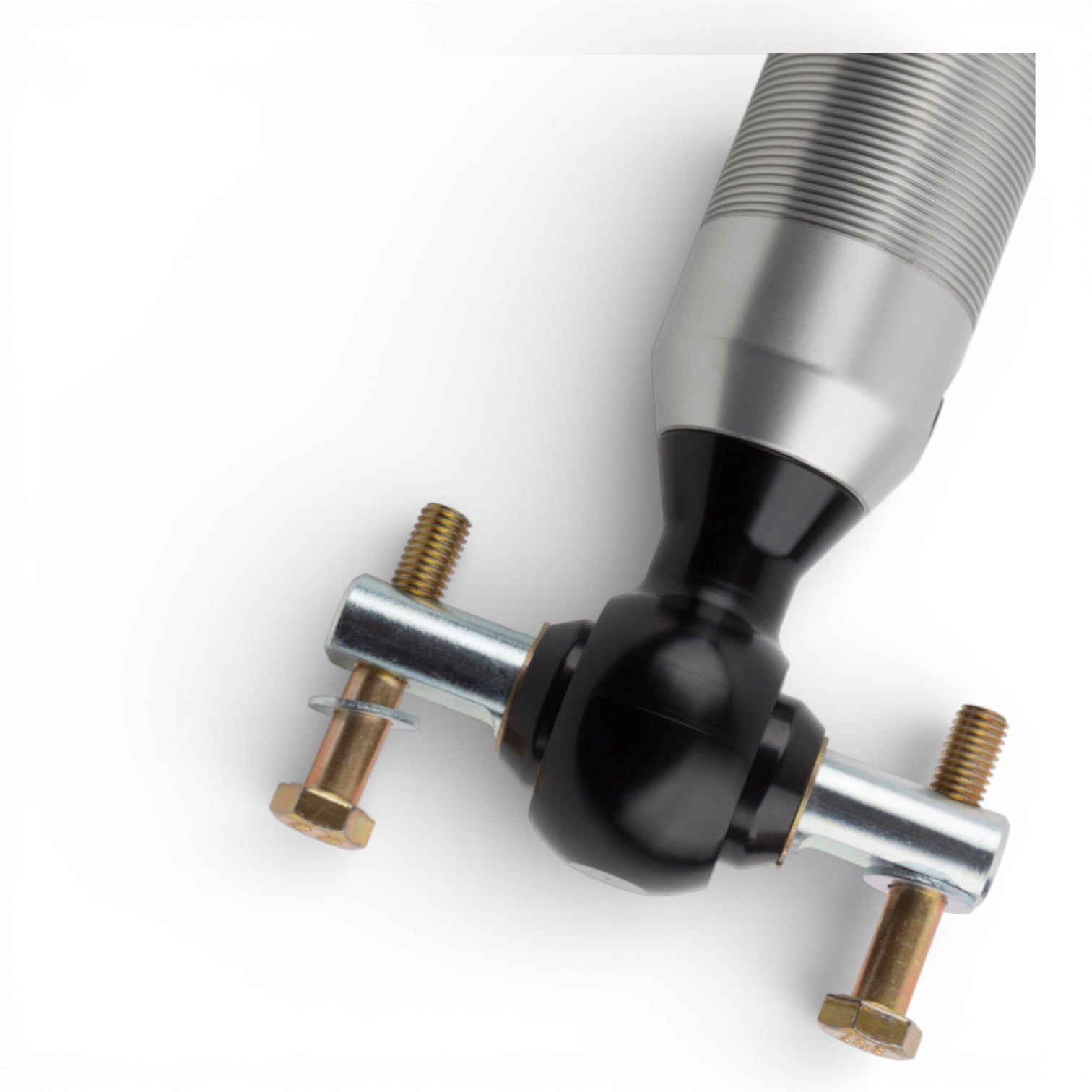

• Bottom Mount: Eyelet

Vehicle Fitment

Toyota 4Runner

• 1996–2002 Toyota 4Runner (All Models)

Toyota Tacoma

• 1995–2004 Toyota Tacoma 4WD
• 1998–2003 Toyota Tacoma RWD (6-lug models only)
• Designed for stock height to 2" front lift applications.

Installation

• Installation Type: Direct bolt-on
• Estimated Install Time: 2–3 hours
• Professional alignment recommended after installation
• Most vehicles require two coilovers for a complete front installation

What’s Included

• (1) FOX 2.0 Performance Series Front Coilover Shock
• Pre-assembled coil spring and hardware
