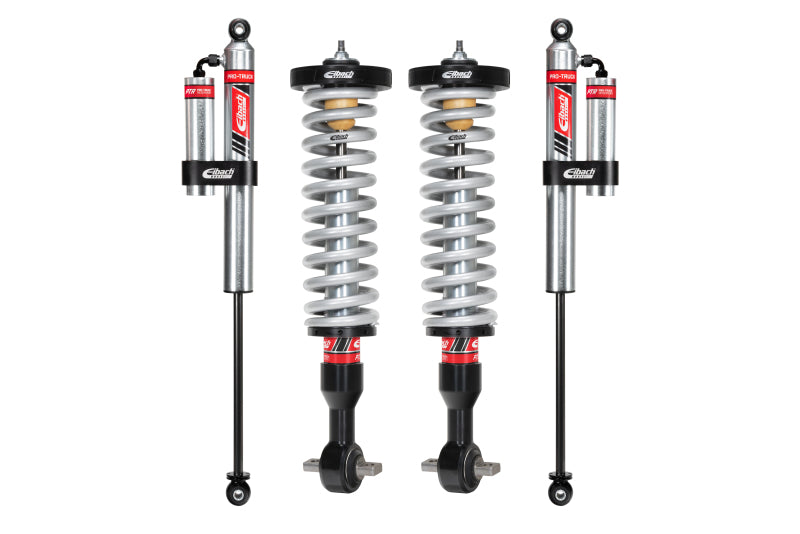

Eibach PRO-TRUCK-LIFT Stage 2R Coilover Kit – 2015–2020 Ford F-150 SuperCrew 4WD (0.5–2.3" Front Lift / 0–1.5" Rear Lift)

Upgrade your Ford F-150’s suspension performance with the Eibach PRO-TRUCK-LIFT Stage 2R system, designed to deliver improved ride quality, enhanced off-road capability, and adjustable front ride height. Eibach's PRO-TRUCK-LIFT Stage 2R combines threaded height-adjustable coilovers with rear reservoir shocks for fine tuning of ride height and maximum off-road capability. This complete suspension kit provides improved damping control and better handling both on and off the pavement.

Engineered, tested, and manufactured in the USA, the Stage 2R system is built for durability and performance, making it a solid upgrade for daily driving, towing, and off-road use.

Key Features

• Stage 2 system featuring Pro-Truck Coilover 2.0 front shocks and Pro-Truck Reservoir Sport rear shocks
• Height-adjustable front coilovers with external reservoir rear shocks for increased off-road performance
• Anodized 6061-T6 billet aluminum coilover mounts
• 46mm piston monotube shock design with nitrogen-filled variable force valving
• Individually dyno tested for matched performance and reliability
• Heavy-duty bushing system cycle tested for durability
• Engineered, tested, and manufactured by Eibach in the USA
• Two-year warranty

Fitment

2015–2020 Ford F-150 SuperCrew 4WD

2015–2020 Ford F-150 SuperCrew 2.7L V6 EcoBoost 4WD
Front Lift: +0.5" – 2.3"
Rear Lift: +0" – 1.5"

2015–2020 Ford F-150 SuperCrew 3.5L V6 EcoBoost 4WD
Front Lift: +0.5" – 2.3"
Rear Lift: +0" – 1.5"

2015–2020 Ford F-150 SuperCrew 5.0L V8 4WD
Front Lift: +0.5" – 2.3"
Rear Lift: +0" – 1.5"

What’s Included

• (2) Pro-Truck Coilover 2.0 Front Shocks
• (2) Pro-Truck Reservoir Sport Rear Shocks
• Adjustment hardware

Installation

Direct bolt-on installation using factory mounting locations.

Professional installation is recommended. A wheel alignment is required after installation.

Important Notes

Preload is set to the recommended ride height. Increasing preload beyond the recommended setting may reduce droop travel and create a firmer ride.

Fitment, lift height, and warranty coverage are not guaranteed for applications not specifically listed for this product.

Warranty

Two-Year Warranty
