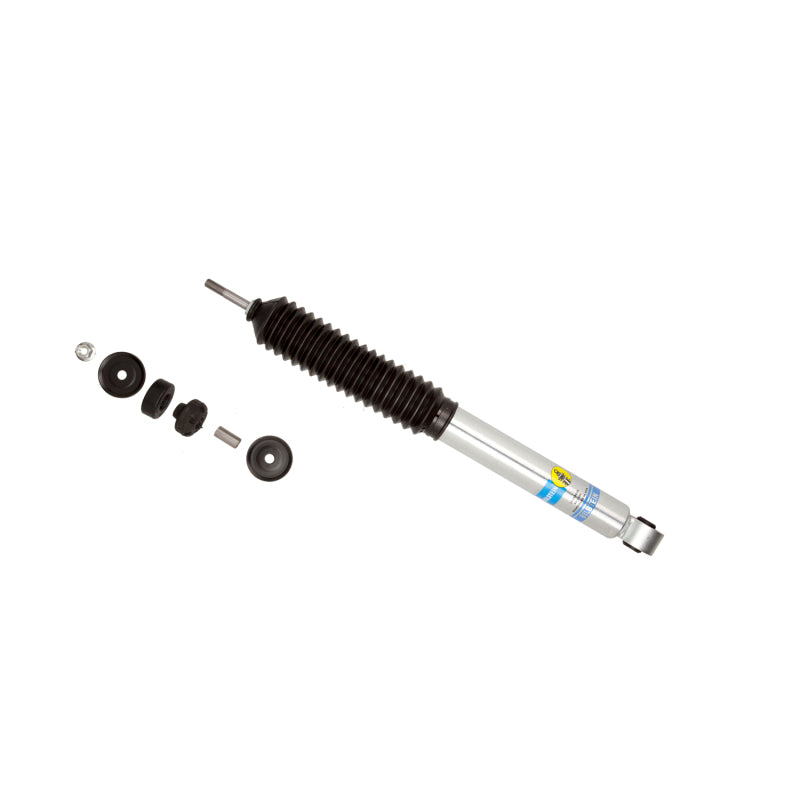

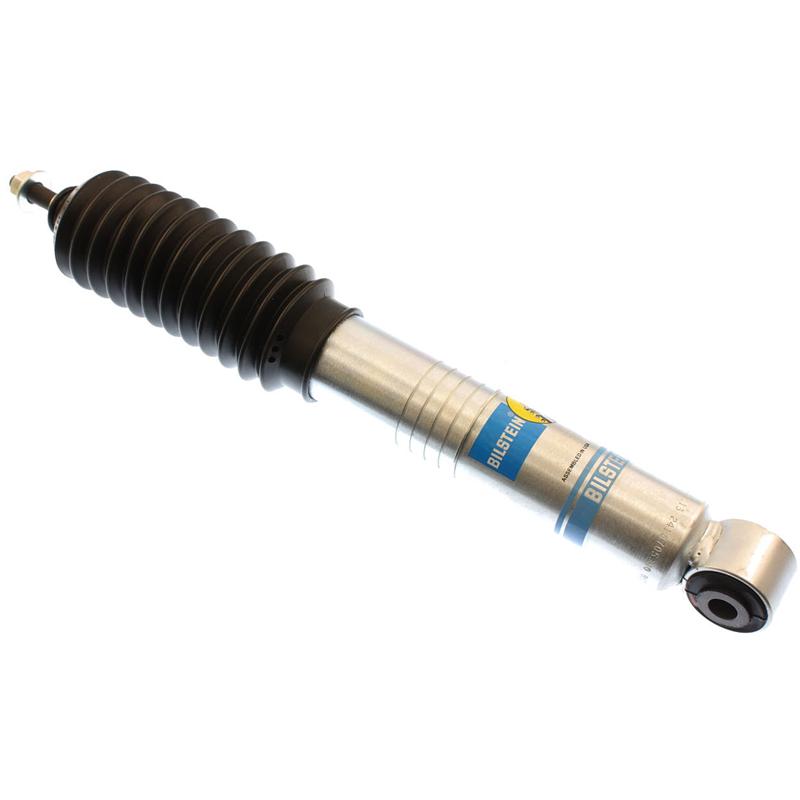

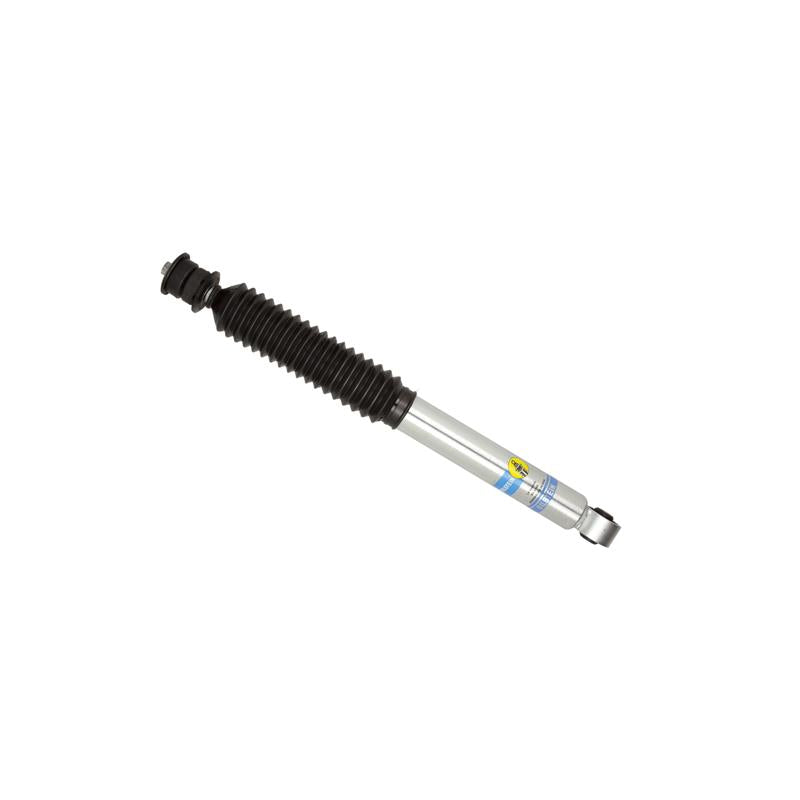

Bilstein 5100 Front Shocks | Ram 2500 / Ram 3500 (2014–2026)
The Bilstein 5100 Series (Part #24-268639) is one of the top front shock choices for Ram 2500 and Ram 3500 owners running a lift kit, towing heavy, or taking it off-road. Engineered as a direct-fit replacement for 2014–2026 Ram 2500 and Ram 3500, the 5100 delivers Bilstein's proven monotube performance — tuned specifically for lifted trucks and the altered suspension geometry that comes with them.
Also available for stock-height applications — the 5100 isn't just for lifted builds. Whether you're on the highway, the trail, or pulling a loaded trailer, these shocks keep your Ram composed and in control.
Key Features
- Monotube Design — like the legendary Bilstein 4600, the 5100 uses a monotube architecture for consistent damping, better heat dissipation, and fade-free performance under sustained use
- Zinc-Plated Finish — superior corrosion resistance purpose-built for trucks that tow, lift, and go off-road; looks sharp and lasts longer than painted finishes
- High-Flow Piston — larger diameter piston delivers better control and responsiveness across all driving conditions
- Velocity-Sensitive Valving — automatically adjusts damping to road conditions in real time — smooth on the highway, controlled on the trail
- Tuned for Lifted Vehicles — valved specifically for trucks with lift kits, complementing the altered suspension geometry rather than fighting it
- Direct-Fit Replacement — bolt-on install, no modification required
Benefits
- Enhanced Off-Road Capability — better control and stability over rough terrain without sacrificing on-road ride quality
- Improved Comfort for Lifted, Towing, and Off-Road Use — absorbs bumps and vibrations effectively with greater control on uneven surfaces
- Long-Term Durability — zinc-plated finish and Bilstein-grade materials resist corrosion and wear for the life of your build
- Superior Handling and Stability — high-flow piston and velocity-sensitive valving give you greater control whether loaded or empty
Specifications
- Part Number: 24-268639
- Internal Design: Monotube
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter: 46mm
- Collapsed Length: 15.03" (382.0mm)
- Extended Length: 22.63" (575.0mm)
- Finish: Zinc Plated
- Reservoir: No
- Adjustable Damping: No
- Boot Included: Black Bellows
- Upper Mount Type: Stem
- Lower Mount Type: Eye 14.1mm
- Spring Seat Included: No
Fitment
Fits: 2014–2026 Ram 2500 4WD & 2014–2026 Ram 3500 4WD
Position: Front (sold individually — order 2 for a complete front axle upgrade)
Pair With an APOC Leveling Kit
Get the most out of your Bilstein 5100s by pairing them with an APOC Industries Ram 2500 / 3500 Leveling Spacer — USA-made, robotically welded, and matched to your lift height.
