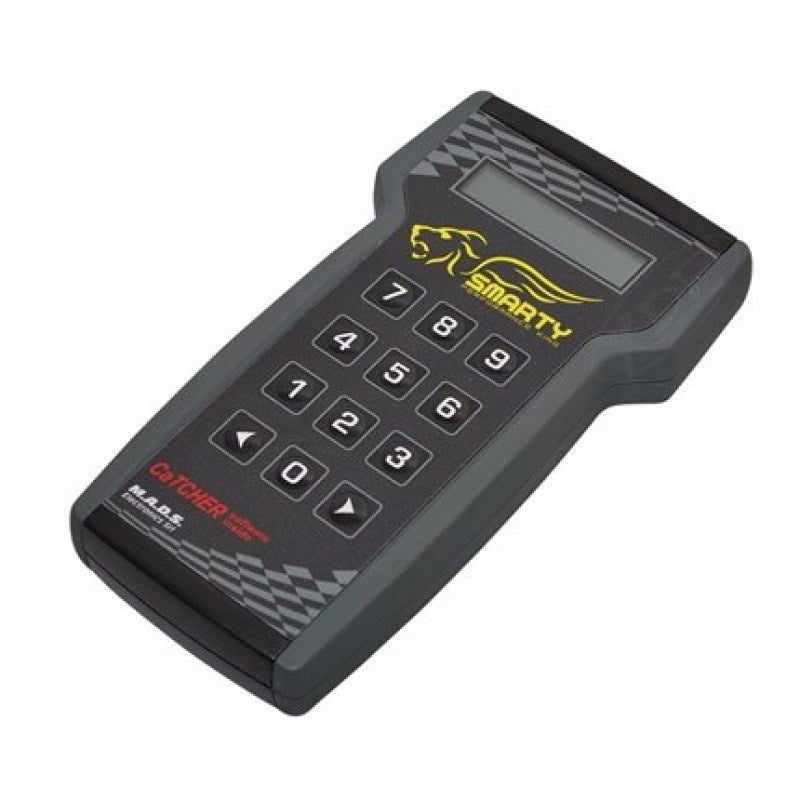

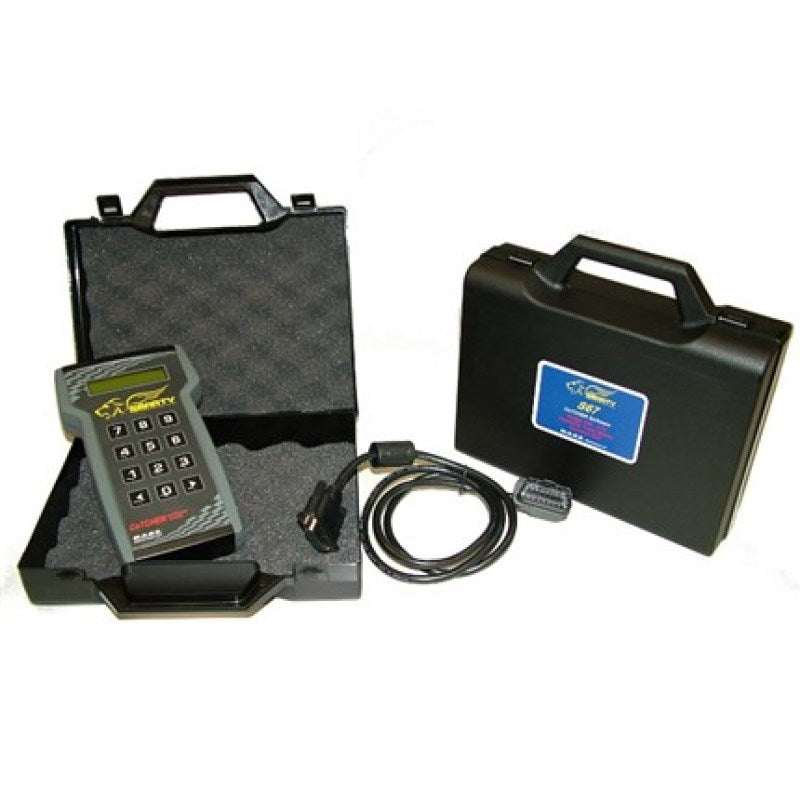

Smarty 98-02 Dodge Ram Cummins 5.9L Diesel S-03 Tuner

Vehicle Application:

• 1998.5 - 2002 Dodge Ram Pickup Trucks Cummins 5.9 L

Fast Guide to Smarty Tuner S03 Special Features:

• CaTCHER software's inside
• Ten different performance levels
• Fastest download in the industry, up to three times faster than the competition, a typical ECM update takes less than 3 minutes
• ABS tire height updates in just few seconds
• Not traceable in the stock setting. Smarty leaves no footprint.
• Cold weather 3 cylinders High Idle is enable in all softwares
• Reads Diagnostic Trouble Codes in plain text
• No tools required, no fuses to pull
• USB built in for simple updates
• Free internet updates
• Most complete keyboard in the industry
• Reliable, it works off your OEM hardware
• Programmable Speed Limiter from 25 to 250 mph*
• Programmable parameters for fine tuning
• * in trucks of 2001 and 2002 the speed limiter is programmable in mph, older trucks have only a speed adjustment

1998.5 - 2002 Dodge Cummins 5.9 L - Fast guide to Smarty S-03 software levels:

• SW# 0 : Half power
• SW # 1 : Fuel Saver
• SW # 2 : Only more fuel and Boost fooling
• SW # 3 : Like # 2 + added timing
• SW # 4 : "Soft" CaTCHER no added timing
• SW # 5 : Like # 4 + added Timing
• SW # 6 : Mild CaTCHER no added timing
• SW # 7 : Like # 6 + added Timing
• SW # 8 : CaTCHER no added timing
• SW # 9 : CaTCHER with Timing

• Software number Zero - About half the power of a stock software. Use it whenever reduced power is desired or when you have to make sure that NO SMOKE is produced.
• Software number One - The Fuel Saver software. Mpg gains vary, in most cases a + 2 MPG has been reported. Please notice that the timing in this software is rather aggressive. HEAVY TOWING is not recommended with this software.
• Software number Two - This software increases the fuel delivered by the ECM and does the boost fooling.
• Software number Three - Same as software # 2 but timing has been added.
• CaTCHER softwares from number Four to number Nine - The even numbered softwares are identical to the odd numbered ones, except for the timing. The softwares without added timing are intended for use with timing adding boxes.
• The power gain at top RPM with these softwares is almost identical. These softwares differ greatly in HOW they get there. Than higher the software number then more aggressive the throttle response from idle speed up. Aggressive to the point that the softwares Eight and Nine can become difficult to handle on slippery roads. Please be very careful when you use these softwares for the first time! It takes some time to learn how to handle them.

CaTCHER Software:

• CaTCHER stands for Clutch and Traction Challenger
• It improves throttle response of the engine greatly. It spools up the turbo sooner. (On average 200 RPM sooner.) It deals with the injection timing. It alters the torque management.

CATCHER versions With and WithOut Added Timing:

• The softwares without added timing are useful if you want to use a timing box stacked with the CaTCHER.

Smarty S-03 VIN Lock:

• The Smarty Tuner S03 only works with one truck/ECM at one time. When you go back to stock a handheld Smarty unlocks from the VIN# and ECM. Now you are ready to go into another truck as many times as you want. The only limit is: ONE AT A TIME!
• The Smarty Tuner S03 needs to be plugged into the OBDII port of the truck to program or change levels but then can be unplugged.
• For customers that had a previous Smarty S03 Tuner on their truck and the Smarty S-03 was lost/broke/stolen, then yes you can purchase this new Smarty S-03 and program your truck without an issue

Cummins Truck Transmission Swap:

• This Smarty Tuner S-03 can be used to update the Cummins Truck/ECM for a transmission swap (Manual to Automatic) or (Automatic to Manual). The Cummins Truck must be a supported truck model for this Smarty S03. The Smarty recovery file is required and can be purchased for $150. To request the Smarty recovery file, please EMAIL the Smarty Manufacturer dedicated North American tech support at: support@smartypros.com
• Include the following information in the email to SmartyPros: Smarty Model Number / Truck Year, Make, Model and if Cab n Chassis or not / Full VIN / Transmission Details

Smarty Tuner Warranty and Information:

• Smarty warranty is 1 year.
• For information including Warranty, Disclaimer of liability, User Guide, Software, and More, please visit Smarty Manufacturer website at: https://www.madselectronics.com/DownloadS03A.html
• Note: The Smarty product we Sell only Works with DPF Installed and EGR Installed and all emissions in place. If you have deleted anything on your truck emissions - This Product will not work !
• Smarty products are not legal for use in the State of California. Note: We do not ship Smarty to California.
• Note: Installed products are not returnable. If the seal is broken, open-box item, then the Smarty Tuner is not returnable.
