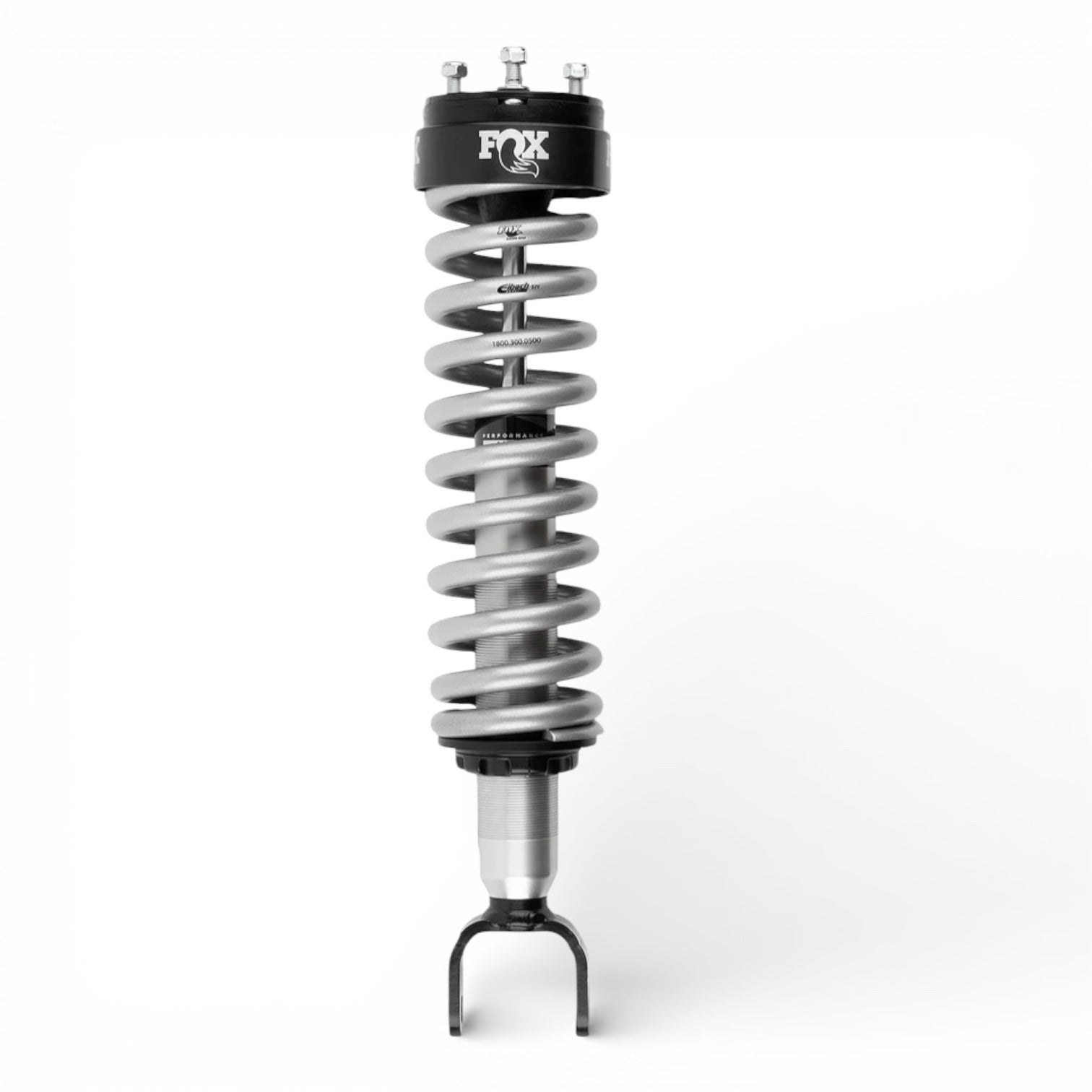

2014–2019 Ram 1500 4WD Diesel Fox 2.0 Performance Series Coilover Shock (0–2" Lift)

Upgrade your suspension with the proven performance of the Fox 2.0 Performance Series Coilover. This bolt-on coilover shock is loaded with advanced technology designed to improve ride quality, control, and durability both on and off the road. Featuring a precision metal impact extruded aluminum body, it delivers increased cooling capacity while remaining corrosion resistant for long-term reliability. The internal floating piston (IFP) monotube design separates shock oil from the high-pressure nitrogen gas chamber, eliminating aeration and ensuring consistent damping performance. Factory-tuned valving provides a smooth, controlled ride in all conditions, while the included vehicle-specific upper mount with composite bushing helps reduce noise and vibration.

Designed for easy installation, this coilover system includes locking spring preload rings that allow for simple ride height and preload adjustments, paired with a high-quality coil spring selected for optimal performance. These shocks are engineered to bolt on with no modifications and are ideal for leveling your truck front-to-rear. Whether you're running a stock setup or a lifted application that reuses factory mounting locations, the Fox 2.0 Coilover delivers dependable performance, improved handling, and a comfortable ride in even the toughest conditions.

Key Features

• 2.0" impact extruded aluminum body for improved heat dissipation and corrosion resistance
• Internal Floating Piston (IFP) monotube design for consistent damping performance
• Factory-tuned valving for balanced on-road comfort and off-road control
• Adjustable spring preload for ride height and leveling capability
• Composite upper mount bushing helps reduce noise and vibration
• Bolt-on design with no modification required

Performance Benefits

The Fox 2.0 Performance Series Coilover is engineered to deliver improved ride control, reduced shock fade, and better overall handling. Its monotube design and internal reservoir allow for consistent performance under demanding conditions, making it a reliable upgrade for both daily driving and off-road use.

Specifications

• Series: Performance
• Travel: 5.39"
• Front Lift Height: 0–2"

Construction

• Body: 2.0" impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body
• Body Plating: Clear anodized for durability
• Components: Black anodized CNC machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application-specific tuned valving
• Seals: Redundant sealing system (main seal, wiper seal, scraper seal)
• Bearings: Large diameter heavy-duty spherical bearings

Dimensions

• Extended Length: 20.46"
• Compressed Length: 15.06"

Mounting

• Top Mount: TM
• Bottom Mount: Eyelet

Fitment Notes

• Without air ride (diesel models only)

Installation

• Install Time: Approximately 2–3 hours
• Difficulty: Moderate
• Hardware: Includes necessary components unless otherwise specified
• Notes: Direct bolt-on installation—no cutting or welding required

Fitment

Fits the following vehicles:

• 2014–2018 Ram 1500 4WD Diesel (All trims) – Without Air Ride
• 2019 Ram 1500 Classic 4WD Diesel (All trims) – Without Air Ride

Includes trims such as:
Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, SLT, Sport, ST, SXT, Tradesman

Position: Front
Lift Range: 0–2"

Ideal For

• Front-end leveling setups
• Daily driving with improved ride quality
• Off-road and mixed terrain use
• Stock or lifted trucks using factory mounting locations

What’s Included

• (1) Fox 2.0 Performance Series Coilover Shock
