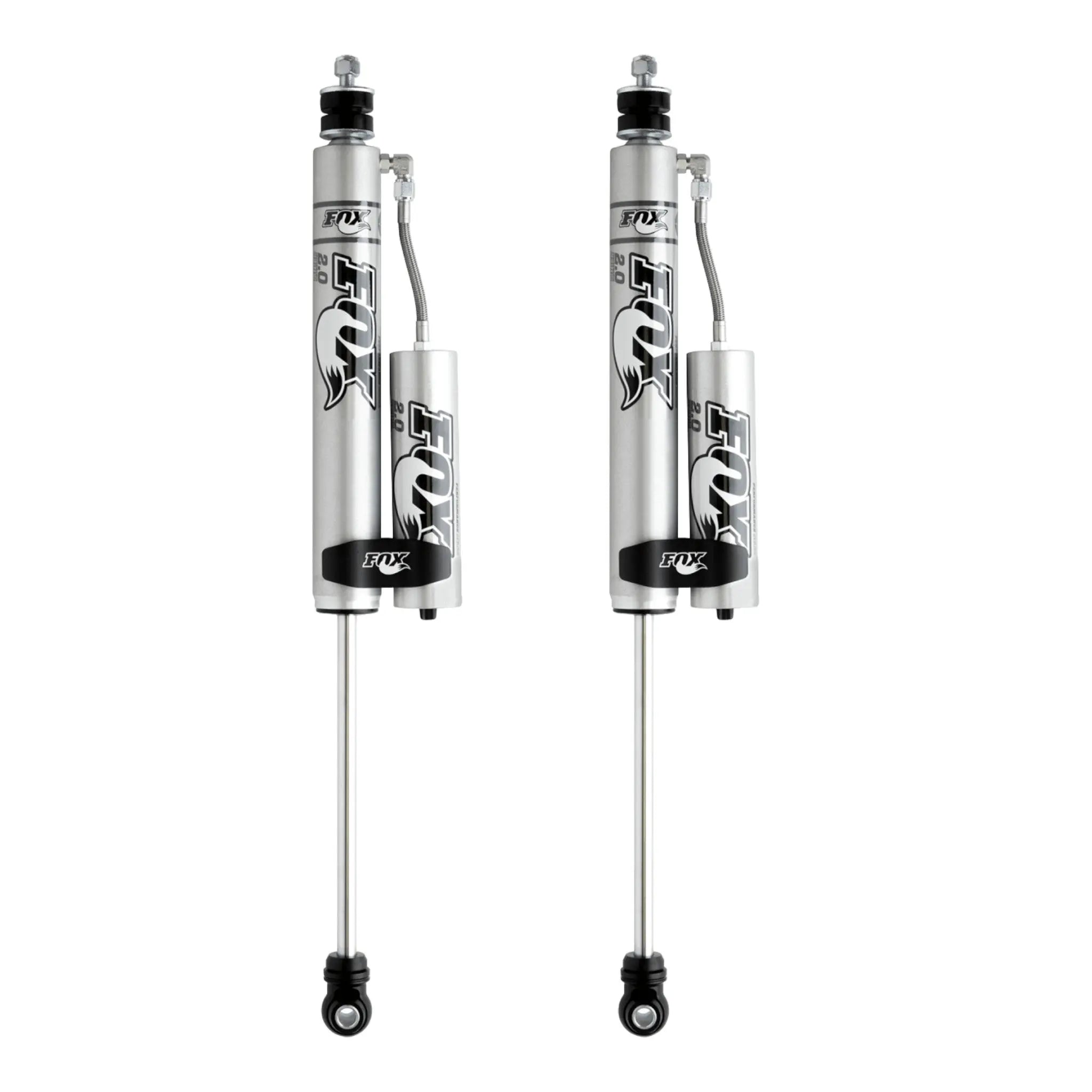

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Part Number Options |
Lift/Lowered |
Position |
Item |
Quantity |
Extended Length |
Compressed Length |
Travel |
Top Mount |
Bottom Mount |
Reservoir |
Color |
985-26-161 |
0-1.5" Lift |
Front |
Shock Absorber |
2 |
21.95" |
13.85" |
8.1" |
STEM |
EYELET/SLEEVE |
Internal Floating Piston (IFP) |
Aluminum |
985-26-162 |
2-3.5" Lift |
Front |
Shock Absorber |
2 |
24.05" |
14.95" |
9.1" |
STEM |
EYELET/SLEEVE |
Internal Floating Piston (IFP) |
Aluminum |
985-26-163 |
4-5" Lift |
Front |
Shock Absorber |
2 |
25.65" |
16.05" |
9.6" |
STEM |
EYELET/SLEEVE |
Internal Floating Piston (IFP) |
Aluminum |
985-26-164 |
5.5-7" Lift |
Front |
Shock Absorber |
2 |
27.25" |
16.65" |
10.6" |
STEM |
EYELET/SLEEVE |
Internal Floating Piston (IFP) |
Aluminum |
Body |
2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
Body Plating |
Clear-anodized for a durable finish |
Reservoir |
Internal IFP mono-tube reservoir design |
Components |
Black-anodized, CNC-machined 6061-T6 billet aluminum |
Shaft |
5/8" hard chrome plated heat-treated alloy steel |
Piston |
Race-developed high-flow piston design |
Valving |
Application-specific valving to maximize performance |
Seals |
Redundant sealing pack system main seal, wiper seal, scraper seal |
Bushings |
Quiet nitrile rubber allows for increased suspension articulation |
