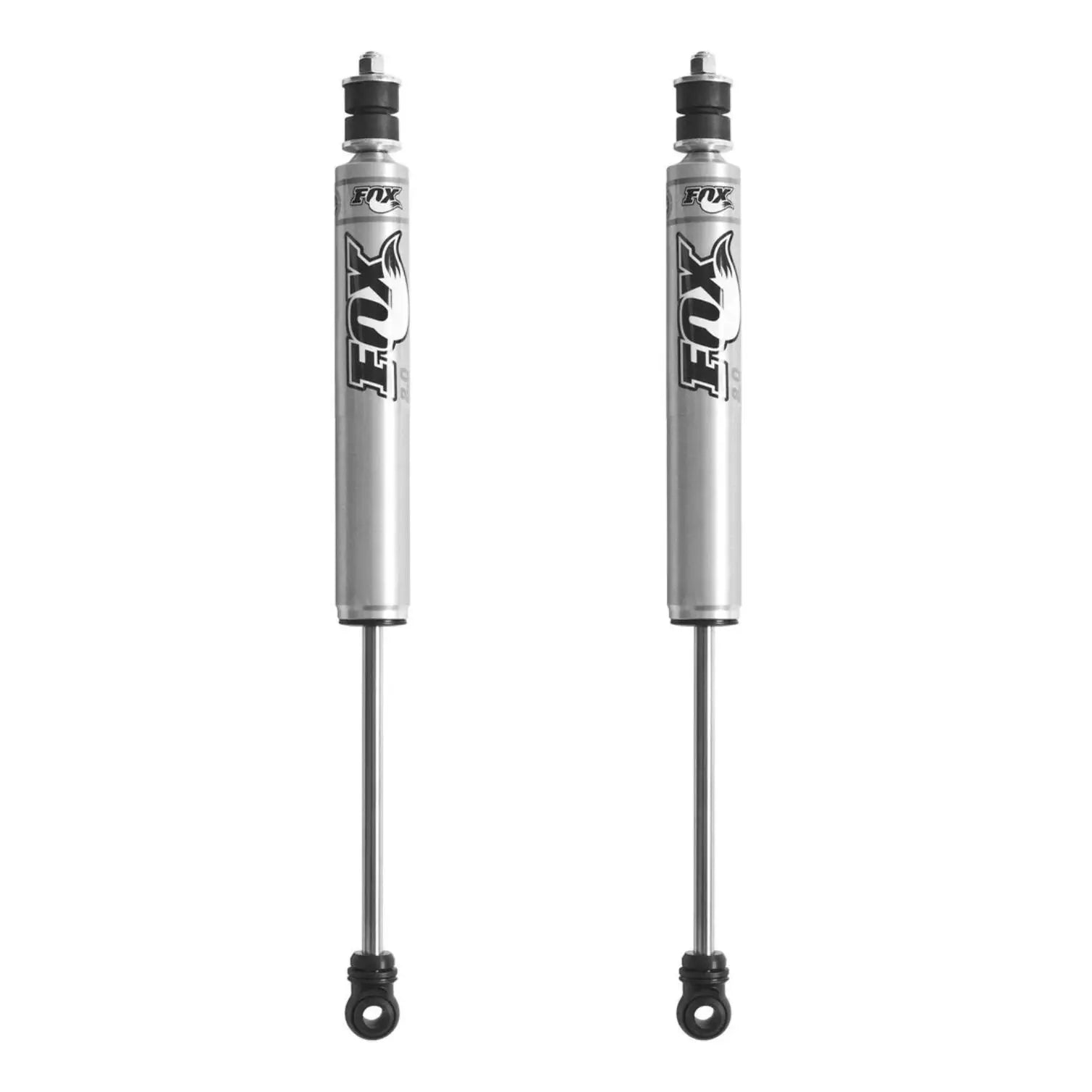

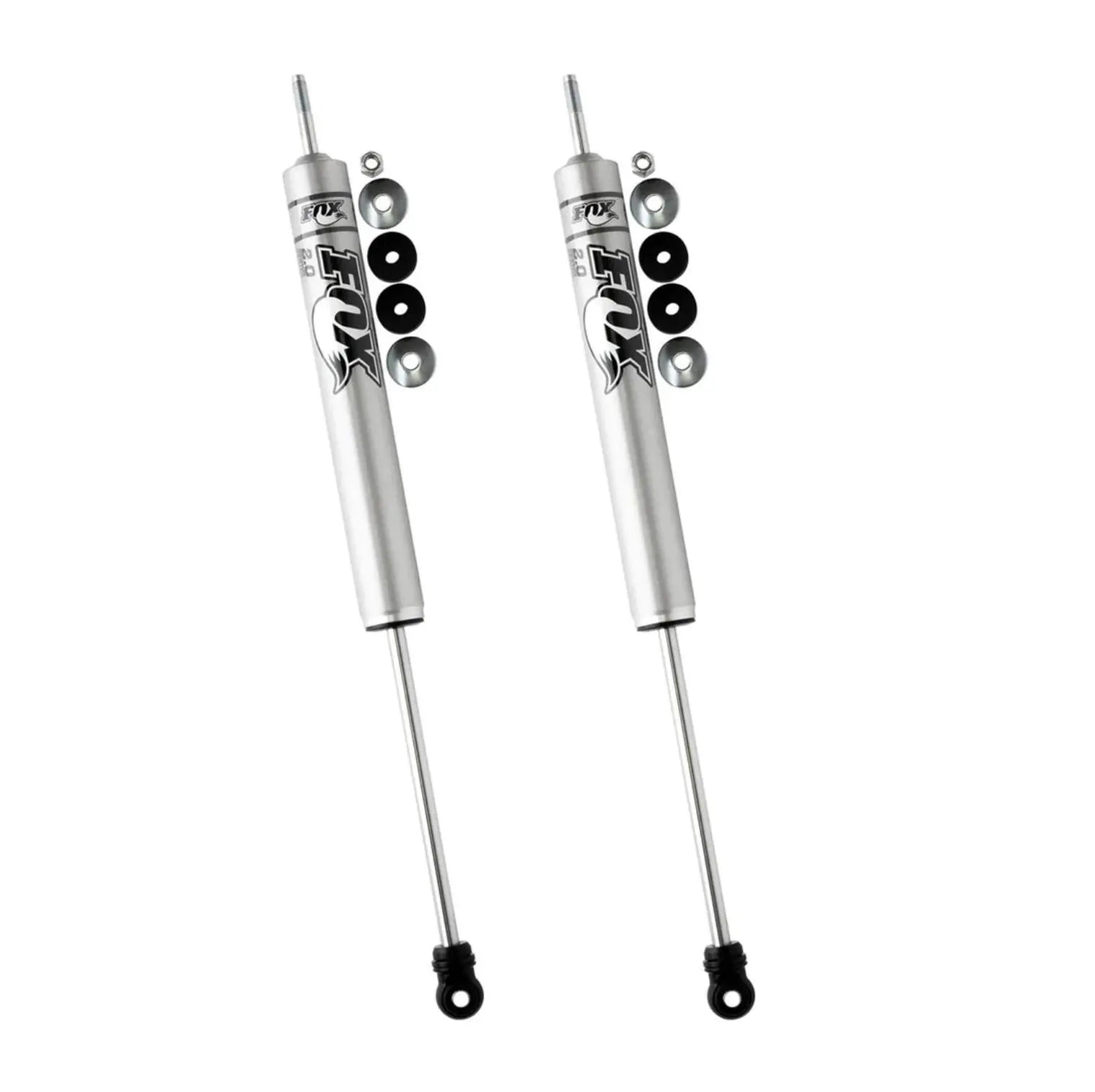

2017-2023 Ford Super Duty F-250 / 350 4WD FOX 2.0 Performance Series Shocks Front Pair

$611.00
SKU: 985-24-154

Front Lift

Checkout Secure

Great reasons to buy from us:

  • Image of Need help! Give us a call or message us.

    Top Notch Customer service!

    Need help! Give us a call or message us.
  • Image of Lifetime warranty on all Apoc products.

    Lifetime Warranty

    Lifetime warranty on all Apoc products.

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the most challenging conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race-developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predictable ride quality capable of handling the roughest road conditions.


Part Number Options Lift/Lowered Position Item Quantity Extended Length Compressed Length Travel Top Mount Bottom Mount Reservoir Color
985-24-154 0-1.5" Lift Front Shock Absorber 2 21.95" 13.85" 8.1" STEM EYELET/SLEEVE Internal Floating Piston (IFP) Aluminum
985-24-155 2-3.5" Lift Front Shock Absorber 2 24.05" 14.95" 9.1" STEM EYELET/SLEEVE Internal Floating Piston (IFP) Aluminum
985-24-156 4-5" Lift Front Shock Absorber 2 25.65" 16.05" 9.6" STEM EYELET/SLEEVE Internal Floating Piston (IFP) Aluminum
985-24-157 5.5-7" Lift Front Shock Absorber 2 27.25" 16.65" 10.6" STEM EYELET/SLEEVE Internal Floating Piston (IFP) Aluminum


Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application-specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bushings Quiet nitrile rubber allows for increased suspension articulation
Shipping This item ships to
Delivery Estimated between and . Will usually ship within 1 business day.

Description

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the most challenging conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race-developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predictable ride quality capable of handling the roughest road conditions.


Part Number Options Lift/Lowered Position Item Quantity Extended Length Compressed Length Travel Top Mount Bottom Mount Reservoir Color
985-24-154 0-1.5" Lift Front Shock Absorber 2 21.95" 13.85" 8.1" STEM EYELET/SLEEVE Internal Floating Piston (IFP) Aluminum
985-24-155 2-3.5" Lift Front Shock Absorber 2 24.05" 14.95" 9.1" STEM EYELET/SLEEVE Internal Floating Piston (IFP) Aluminum
985-24-156 4-5" Lift Front Shock Absorber 2 25.65" 16.05" 9.6" STEM EYELET/SLEEVE Internal Floating Piston (IFP) Aluminum
985-24-157 5.5-7" Lift Front Shock Absorber 2 27.25" 16.65" 10.6" STEM EYELET/SLEEVE Internal Floating Piston (IFP) Aluminum


Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application-specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bushings Quiet nitrile rubber allows for increased suspension articulation
