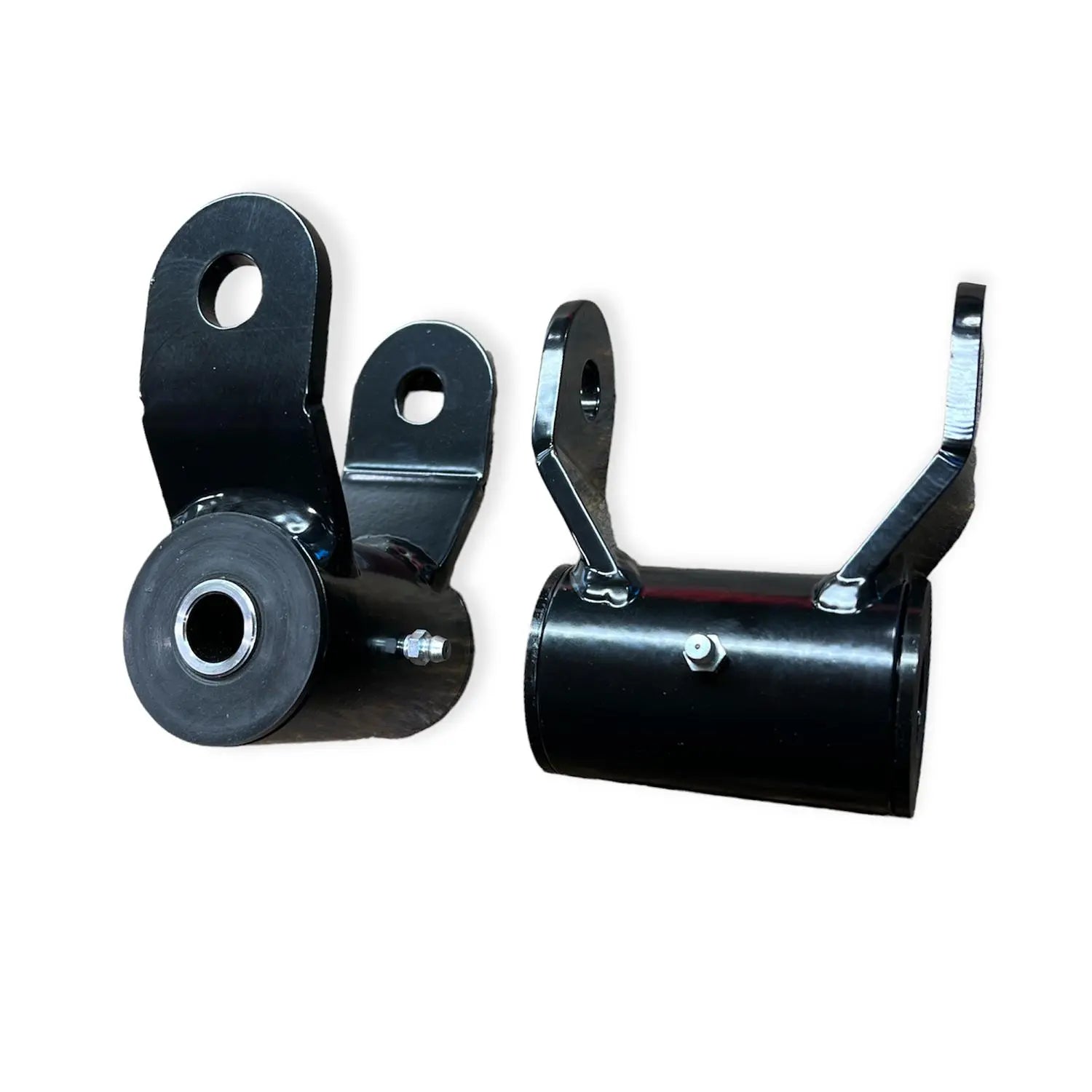

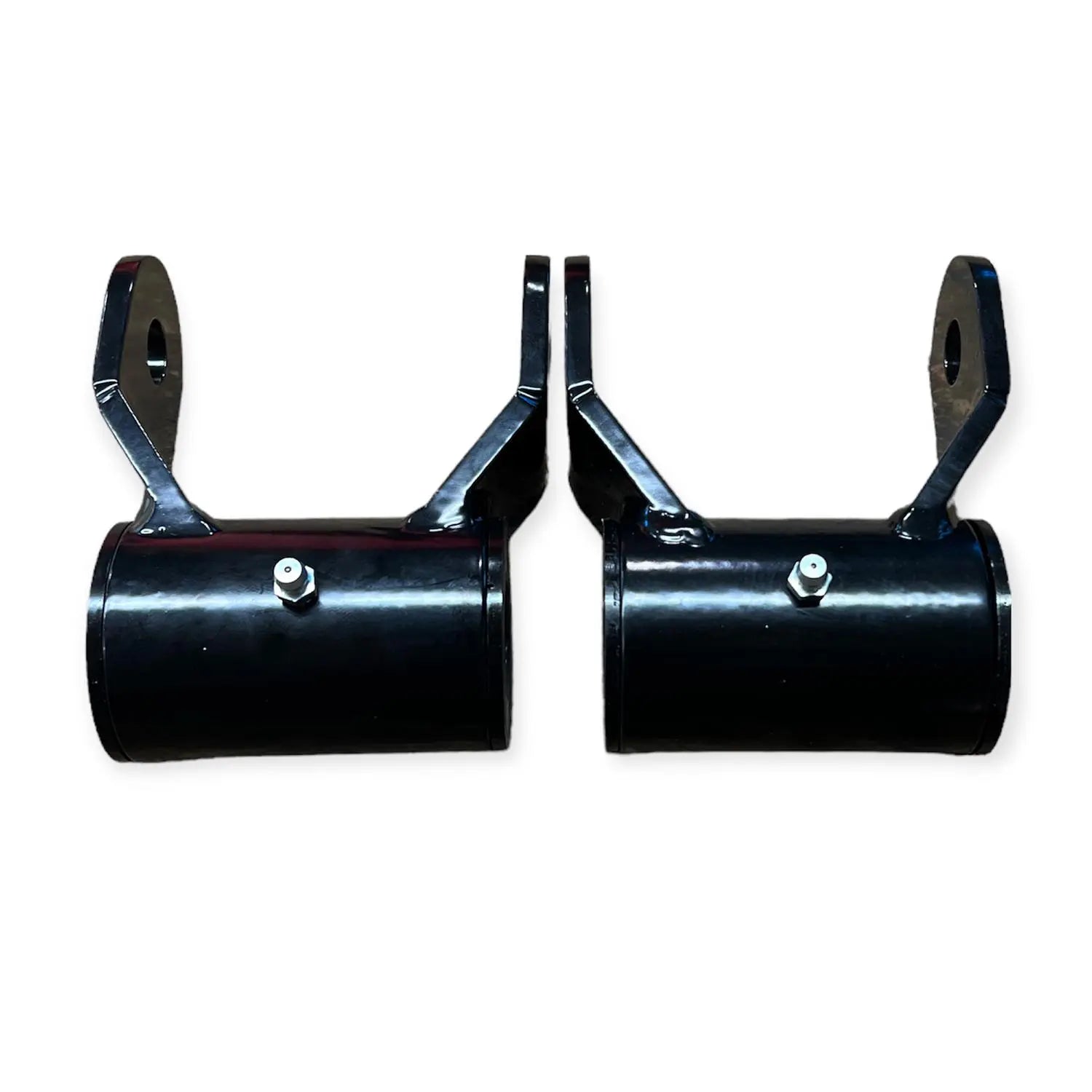

2004-2014 Ford F-150 1" Rear Lift Shackle | Apoc Industries USA-Made

Do Lowering Shackles Affect Ride Quality?

In most cases: No, not significantly.

Lowering shackles drop the rear of the truck by relocating the rear leaf spring mounting point—not by removing leaf springs or altering spring rates. This means the suspension system continues to function much like stock.

✅ Why Ride Quality Usually Stays the Same

• Leaf Spring Geometry Is Preserved: The springs still carry the load the same way—they’re just mounted higher relative to the frame.
• No Change to Spring Rate or Shocks: Since you’re not swapping springs or shocks (for mild drops), the ride feel remains largely OEM.
• Polyurethane Bushings: Help maintain quiet operation and reduce flex, improving long-term ride consistency.

⚠️ Situations Where Ride May Be Affected

🔸 Reduced Suspension Travel: A 2" drop brings the axle closer to the frame. If bump stops aren't adjusted, you may hit them sooner over large bumps.
🔸 Increased Axle Angle or Leaf Spring Arching: Rare, but possible if combined with other drop components or a flip kit.
🔸 Towing and Hauling: With less rake, trucks may appear to sag more under load. Suspension upgrades like helper bags may be needed for heavy-duty use.

💬 Summary

For 1"–2" lowering shackles, ride comfort remains nearly identical to factory, making them one of the easiest and cleanest ways to drop the rear of your truck without compromising everyday drivability.

⏱️ Installation Time for Lowering Shackles

For most vehicles—including the 2004–2014 Ford F-150—installing rear lowering shackles typically takes:

🕒 Estimated Install Time: 1 to 1.5 hours

🔧 Install Overview

• Skill Level: Beginner to moderate (depending on experience with suspension work)
• Tools Needed:
• No cutting, welding, or fabrication is required. This is a bolt-on installation using factory mounting points.
• Most installs are done with basic hand tools in a home garage.

💡 Pro Tips

• Loosen leaf spring bolts with the truck on the ground before lifting for easier access.
• Use a pry bar or lift the axle slightly to relieve tension when aligning the new shackles.
• Always torque bolts to factory specs once the vehicle is back on the ground under full weight.

Can I Use Factory Hardware?

Yes — most 2004–2014 F-150s can reuse factory bolts. On some trucks, one bolt per side may need to be cut due to frame clearance. However, many have successfully removed the bolt without cutting.

A replacement bolt is included.

Replace hardware if rusted, damaged, or upgrading finishes.

Always torque at ride height for proper bushing preload.

🛢️ What Type of Grease Should I Use in Polyurethane Bushings?

Using the correct grease is essential for maintaining quiet, smooth operation and extending the life of polyurethane bushings—especially in suspension components like lowering shackles.

✅ Recommended Grease: Synthetic Waterproof Grease with PTFE (Teflon)

This type of grease is specifically designed for polyurethane bushings. It creates a slick barrier between the bushing and sleeve, preventing noise, binding, and premature wear.

🔧 Key Features to Look For:

• 🟩 PTFE-Based or Silicone-Based – Both are bushing-safe and reduce friction
• 🟩 Waterproof & Non-Petroleum – Resists washout and won’t degrade polyurethane
• 🟩 Thick, Tacky Formula – Stays in place during articulation and suspension travel
• 🟩 Non-Reactive – Safe for all types of polyurethane and metal sleeves

⚠️ Avoid These:

• ❌ Petroleum-Based Grease (like standard lithium or chassis grease) – Can cause polyurethane to soften, swell, or degrade over time
• ❌ WD-40 or Spray Lubricants – Not a true lubricant and quickly evaporates

💡 Pro Tip

Apply a generous coat of grease inside the bushing bore and on the sleeve during installation. If your shackles include zerk (grease) fittings, pump fresh PTFE grease in every 6–12 months for best performance.
